EMC Enterprise NVMe Solid State Drive - Model 118000835 Product Details

1、 Product Overview

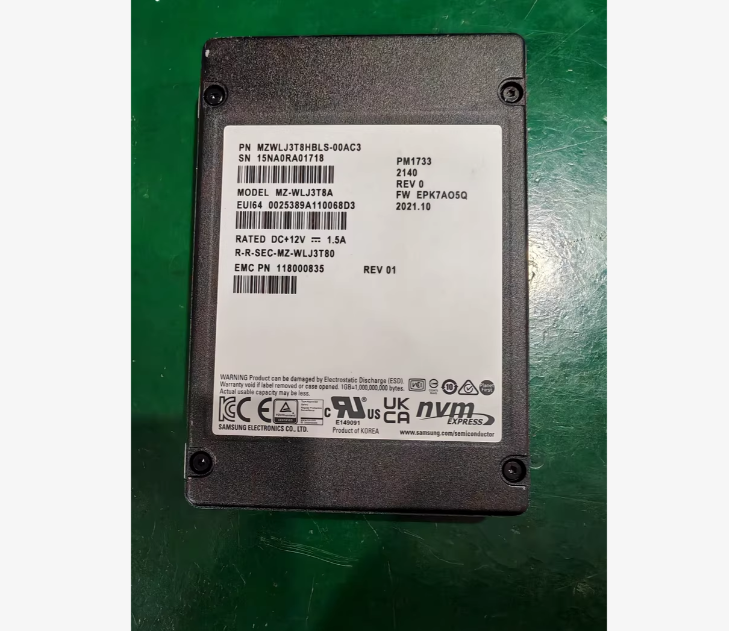

EMC 118000835 (disk body model PM1733) is a high-performance enterprise grade NVMe solid-state drive with a capacity of 3.84TB. The product uses advanced 3D TLC NAND flash technology, based on PCIe 4.0 interface and NVMe protocol, designed specifically for the high demand workloads of modern data centers, achieving excellent balance in performance, capacity, and reliability.

2、 Detailed technical specifications

Detailed specifications of parameter categories

Basic Information

EMC part number 118000835

Disk model PM1733

Flash technology 3D TLC NAND

Interface protocol NVMe 1.4 over PCIe 4.0

Appearance specification 2.5 inches U.2 (15mm thickness)

Capacity information

Nominal capacity 3.84TB

User available capacity ≈ 3.5TB

performance parameters

Sequential read speed 7000 MB/s

Sequential write speed 4200 MB/s

4K random read 1400000 IOPS

4K random write 300000 IOPS

Read/write delay: Read<65 μ s, write<10 μ s

Reliability parameters

Durability level 3 DWPD

Service life 21 PBW

Mean time between failures 2500000 hours

Annual failure rate 0.35%

Warranty Policy 5-year Limited Warranty

3、 Core Technologies and Characteristics

1. High performance architecture design

PCIe 4.0 x4 interface, providing a transfer rate of 16 GT/s

Support multiple namespaces and SRIOV virtualization

Optimized parallel processing architecture

Low power and high-performance controller

2. Enterprise level reliability assurance

Full path power-off protection: enhanced supercapacitor array

End to end data protection: complete data path protection

Advanced LDPC Error Correction: Fourth Generation LDPC Error Correction Technology

Intelligent Health Monitoring: Real time Flash Health Management System

3. Intelligent management function

Hot swappable support: Compliant with NVMe hot swappable standards

Telemetry: Real time performance monitoring and analysis

Intelligent Temperature Control: Multi zone Dynamic Temperature Management

Remote management: NVMe MI 1.2 management interface

4、 Compatibility information

Supported Dell EMC Systems:

PowerMax 2500/8500 Full Flash Array

Unity XT 380F/480F/680F/880F

PowerEdge MX series modular servers

VxRail P-series hyper fusion system

Software environment support:

VMware HANA 7.0 U3 and above

Windows Server 2022

Red Hat Enterprise Linux 8.5 and above

SUSE Linux Enterprise Server 15 SP3

5、 Recommended application scenarios

1. Key business of the enterprise

Large scale database system (Oracle Exadata)

SAP HANA In Memory Computing Platform

Enterprise Resource Planning System

2. Virtualization and Cloud Computing

Enterprise level virtualization platform

Hyper converged infrastructure

Hybrid cloud storage solution

3. Data analysis and AI

Real time data analysis platform

Artificial Intelligence/Machine Learning Training

Big data processing cluster

4. High performance computing

Scientific research computation

Financial risk modeling

Media content creation

6、 Summary of Product Advantages

performance advantage

PCIe 4.0 Ultimate Performance Performance

Ultra low latency response

Excellent random read and write performance

Capacity advantage

High storage density design

Optimized spatial efficiency

Good scalability

Reliability advantage

Enterprise level durability design

A comprehensive data protection mechanism

Long life cycle guarantee

7、 Environmental specifications

Parameter specifications

Working temperature: 0 ° C to 55 ° C

Storage temperature -40 ° C to 85 ° C

Working humidity 5% to 95% non condensing

Working altitude 3050 meters

Typical power consumption 12-14W

Maximum power consumption 25W

Impact resistance 1000G (0.5ms)
