EMC Enterprise NVMe Solid State Drive - Model 118000839 Product Detailed Description

     1. Product Overview

The EMC 118000839 (model number PM1733) is a high-performance enterprise-grade NVMe solid-state drive with a capacity of 1.92TB. This product utilizes advanced 3D TLC NAND flash technology, featuring a PCIe 4.0 interface and NVMe protocol, delivering exceptional performance and reliability for enterprise workloads. It serves as an ideal storage solution for building modern data centers.

II. Detailed Technical Specifications

Parameter Category Detail Specifications

Basic Information

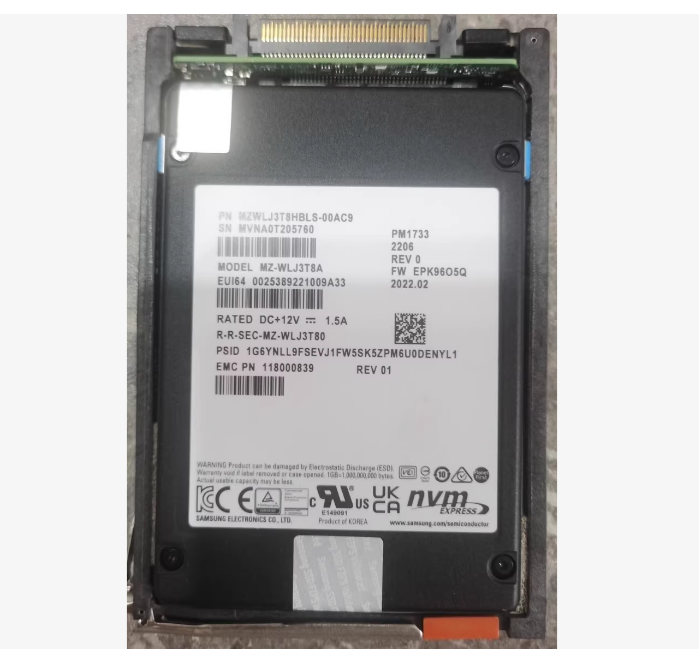

EMC Part Number 118000839

Disk Model: PM1733

Flash memory type: 3D TLC NAND

Interface Protocol: NVMe over PCIe 4.0

Form factor: 2.5-inch U.2

Capacity information

Nominal Capacity: 1.92TB

Available user capacity ≈1.75TB

Performance parameters

Sequential read speed: 6,500 MB/s

Sequential write speed: 3,200 MB/s

4K Random Read 900,000 IOPS

4K Random Write 200,000 IOPS

Read and Write Latency: Read <75μs, Write <15μs

Reliability parameters

Durability Rating: 5 DWPD

Service life: 17.5 PBW

Mean Time Between Failures: 2,500,000 hours

Annual failure rate: 0.44%

Warranty Policy: 5-Year Limited Warranty

III. Core Technologies and Features

1. High-performance architecture design

PCIe 4.0 x4 interface, delivering high bandwidth

Supports NVMe 1.4 standard features

Optimized Flash Controller

Low-latency architecture design

      2. Enterprise-level Reliability

Power Failure Protection Mechanism: Super Capacitor Data Protection

End-to-end data protection: comprehensive data integrity verification

Advanced Error Correction: LDPC Error Correction Technology

Intelligent Wear Leveling: Dynamic Block Management

     3. Smart Management Function

Hot-swap support: Online maintenance capability

Health Status Monitoring: Enhanced S.M.A.R.T

Temperature Management: Dynamic Temperature Control Adjustment

Remote Management: NVMe-MI Management Interface

IV. Compatibility Information

Supported Dell EMC Systems:

PowerMax 2500/8500 Series

Unity XT 380F/480F/680F/880F

PowerEdge MX Series Servers

VxRail P Series/V Series

Operating System Support:

VMware vSphere 7.0 or later

Windows Server 2019/2022

Red Hat Enterprise Linux 8/9

SUSE Linux Enterprise Server 15

V. Recommended Application Scenarios

     1. Key Enterprise Applications

Medium-sized database system

Virtualization platform storage

Enterprise application server

     2. Cloud Computing Environment

Private cloud storage infrastructure

Hybrid Cloud Storage Solution

Cloud-native application storage

    3. Data Analysis

Real-time data processing

Business Intelligence Analytics

Machine learning workloads

     4. Virtualization Deployment

Virtual Desktop Infrastructure (VDI)

Server virtualization

Container platform storage
