EMC Enterprise NVMe Solid State Drive - Model 118000747-01 Product Details

1、 Product Overview

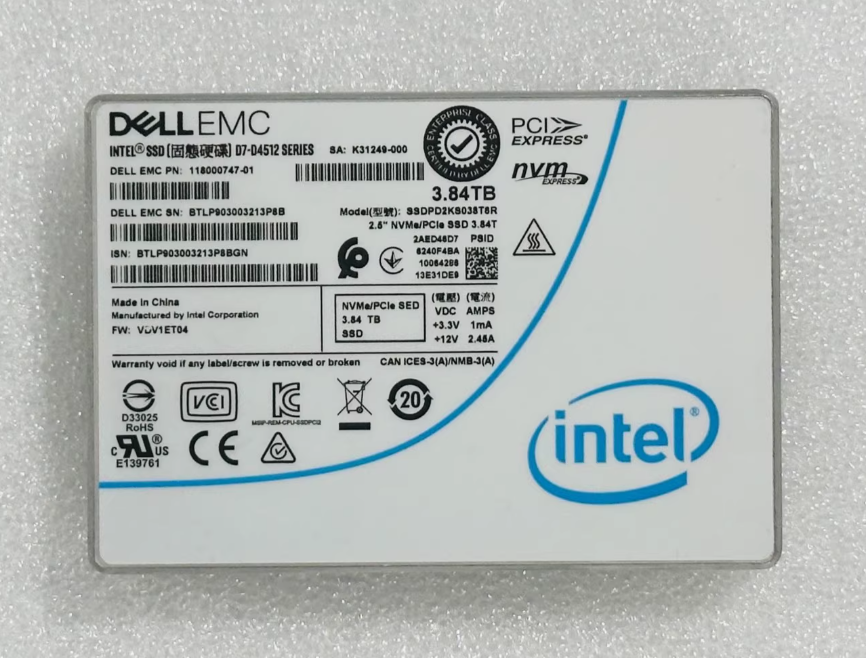

EMC 118000747-01 (using Intel) ® Flash technology is a high-performance enterprise grade NVMe solid-state drive with a capacity of 3.84TB. The product is based on Intel ® Innovative 3D NAND flash technology, combined with PCIe 4.0 interface, provides outstanding performance, reliable durability, and excellent total cost of ownership for critical workloads in enterprises, making it an ideal storage choice for modern data centers.

2、 Detailed technical specifications

Detailed specifications of parameter categories

Basic Information

EMC part number 118000747-01

Flash technology from Intel ®  3D TLC NAND

Interface Protocol NVMe over PCIe 4.0

Appearance specification 2.5 inches U.2 (15mm)

Capacity information

Nominal capacity 3.84TB

User available capacity ≈ 3.5TB (including system reserved space)

performance parameters

Sequential read speed 7000 MB/s

Sequential write speed 4200 MB/s

4K random read 1400000 IOPS

4K random write 300000 IOPS

Read/write latency: Read<70 μ s, write<10 μ s

Reliability parameters

Durability level 3 DWPD

Service life 21 PBW

Mean time between failures 2500000 hours

Unrepairable error rate<1e-17

3、 Core Technologies and Characteristics

1. Intel ®  Innovative 3D NAND Technology

Adopting Intel ®  144 layer 3D TLC NAND

Innovative floating gate technology

High density storage unit design

Optimized read and write performance

2. Enterprise level reliability assurance

Full path power-off protection: onboard supercapacitor

End to end data protection: Power Loss Protection

Advanced LDPC Error Correction: Third Generation LDPC Error Correction

Intelligent Wear Balance: Dynamic Wear Balance Technology

3. Intelligent management function

Hot swappable support: Compliant with NVMe hot swappable standards

Health status monitoring: Telemetry 2.0

Temperature management: Multi zone temperature sensors

Remote management: NVMe MI 1.1 management interface

4、 Compatibility information

Supported Dell EMC Systems:

PowerMax 2500/8500 series

PowerEdge MX740c/MX840c

Unity XT 380/480/680/880

VxRail P Series/V Series

Software environment support:

VMware HANA 7.0 U3 and above

Windows Server 2022

Red Hat Enterprise Linux 8.4 and above

SUSE Linux Enterprise Server 15 SP3

5、 Recommended application scenarios

1. Key business of the enterprise

Large scale database (Oracle Exadata)

SAP HANA In Memory Database

Microsoft SQL Server Cluster

2. Virtualization and Cloud

Enterprise level virtualization platform

Hyper converged infrastructure

Hybrid cloud storage solution

3. Data analysis

Real time data analysis platform

AI/Machine Learning Training

Big data processing cluster

4. High performance computing

Research Calculation Simulation

Financial risk modeling

Media content creation

6、 Summary of Product Advantages

performance advantage

PCIe 4.0 high-performance performance

Consistent low latency

Excellent IOPS performance

Reliability advantage

Intel ® High quality flash memory

Enterprise level durability design

Comprehensive data protection

Energy efficiency advantage

Optimized power management

High energy efficiency ratio design

Reduce operating costs

7、 Environmental specifications

Parameter specifications

Working temperature: 0 ° C to 55 ° C

Storage temperature -40 ° C to 85 ° C

Working humidity 5% to 95% non condensing

Working altitude of 3000 meters

Typical power consumption 12-14W

Maximum power consumption 25W

Impact resistance 1000G (0.5ms)
