NETAPP Enterprise NVMe Solid State Drive - Model 118000741 (005053079) Product Details

     1、 Product Overview

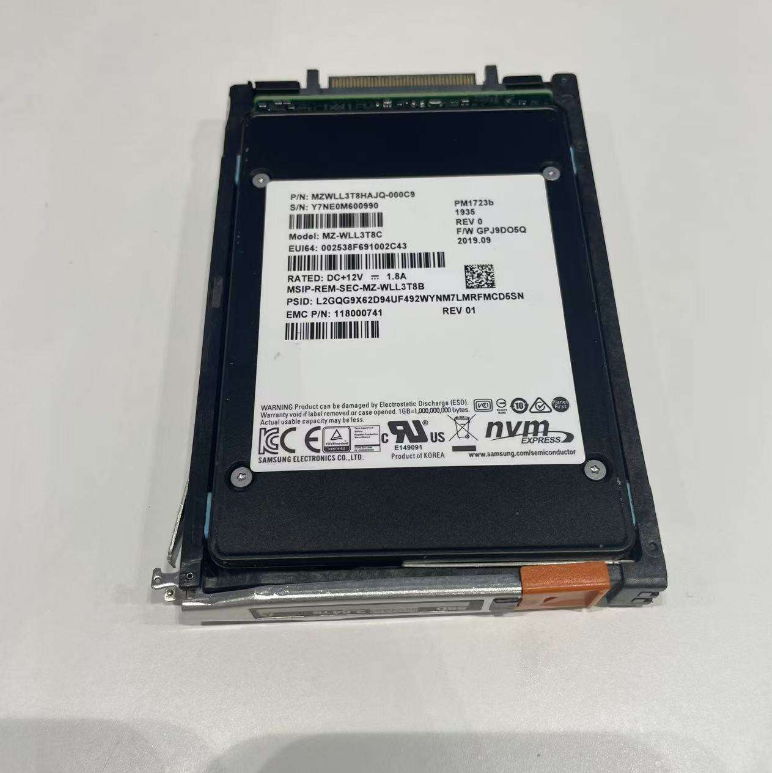

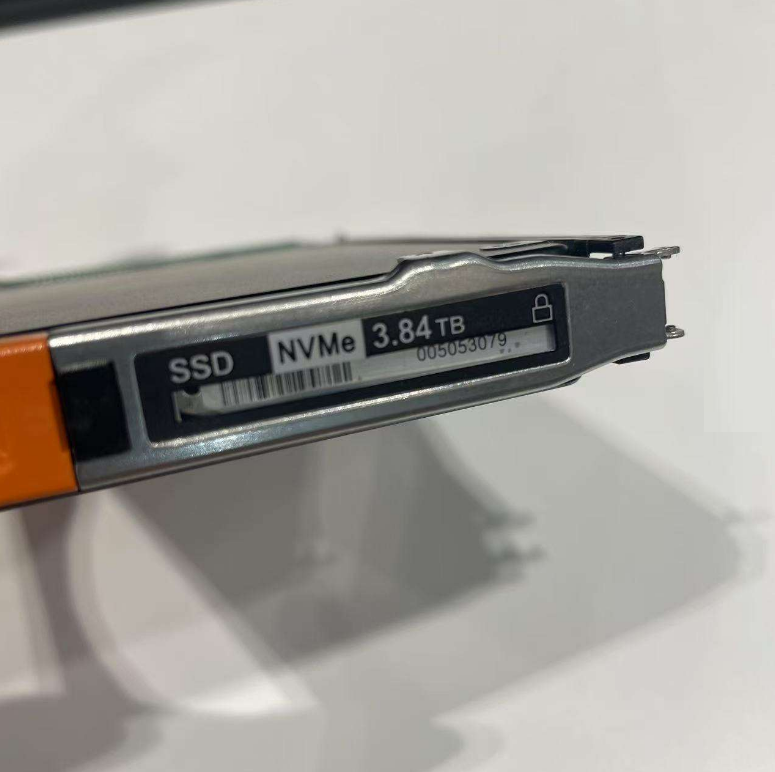

NETAPP 118000741 (disk model PM1723B) is a high-performance enterprise grade NVMe solid state drive with a capacity of 3.84TB. The product uses advanced 3D TLC NAND flash technology and is designed specifically for modern enterprise workloads,  achieving excellent balance in performance, capacity, and reliability, making it suitable for a variety of data intensive application scenarios.

   2、 Detailed technical specifications

   Parameter Category Detailed Specification Remarks

Basic Information

   NETAPP part number 118000741 main identification code

   Auxiliary part number 005053079 spare identification code

   Disk model PM1723B physical disk identification

   NVMe over PCIe 4.0 interface protocol latest interface standard

   Appearance specification 2.5 inches U.2 (SFF-8639) enterprise standard

Capacity information

    Nominal capacity 3.84TB original capacity

    Available capacity ≈ 3.5TB considering RAID and system overhead

performance parameters

   Sequential read speed 6500 MB/s PCIe 4.0 performance

  Sequential write speed 3800 MB/s Continuous write performance

  4K random read 900000 IOPS high queue depth

  4K Random Write 250000 IOPS Random Write Performance

  Read/write latency reading<70 μ s, write<12 μ s low latency performance

Reliability parameters

   Durability level 5 DWPD daily full disk write count

   Service life 35 PBW lifetime write capacity

   Mean time between failures 2500000 hours

   3、 Core Technologies and Characteristics

    1. High performance architecture

PCIe 4.0 x4 interface, doubled bandwidth

Optimized NVMe protocol stack

Support multi namespace isolation

dynamic power management

   2. Enterprise level reliability

Advanced power-off protection: multi-layer data protection mechanism

End to end data integrity: complete CRC check

Intelligent Error Recovery: Automatic Error Detection and Repair

Wear Balance Algorithm: Extending Flash Memory Life

   3. Intelligent management function

Hot swappable support: online maintenance capability

S. M.A.R.T. Enhanced Monitoring: Predictive Fault Analysis

Temperature adaptive adjustment: intelligent temperature control management

Remote management support: NVMe MI standard management interface

    4、 Compatibility information

Supported NetApp systems:

AFF A-series Full Flash Array: A250, A400, A800

FAS9500 series hybrid storage system

Supports ONTAP 9.8 and higher versions

Physical compatibility:

Standard 2.5-inch disc position

DS224C, DS460C disk rack

Support hot swappable installation

    5、 Recommended application scenarios

    1. High performance computing

Real time data analysis

AI/machine learning workloads

Scientific computing simulation

    2. Key applications for enterprises

Large scale database systems (Oracle, SQL Server)

ERP system storage

Virtualization infrastructure

   3. Cloud service environment

Private cloud storage platform

Hybrid cloud storage solution

Container persistent storage
