Product Overview

1.Core Title

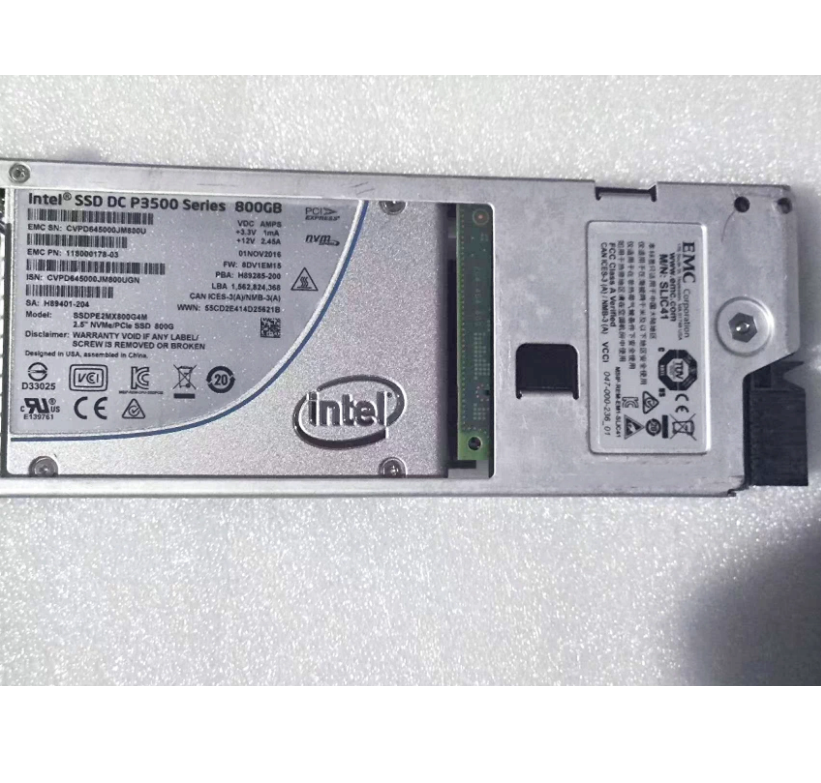

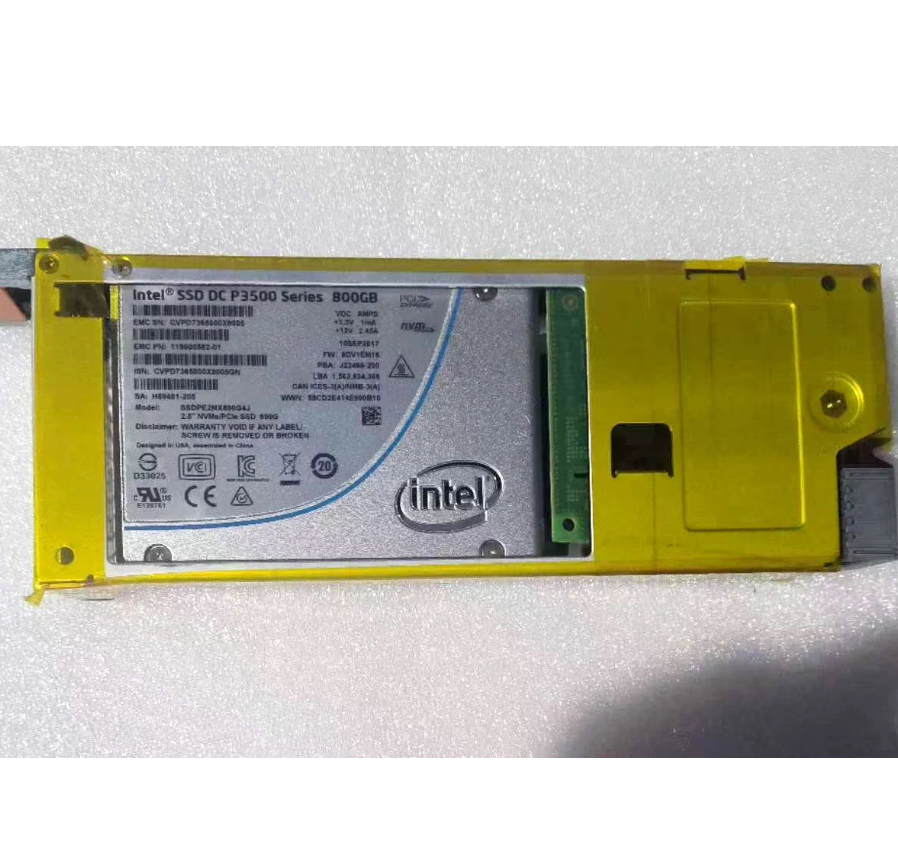

118000562-01 is a high-performance enterprise grade NVMe solid-state drive that features PCIe 3.0 interface and U.2 form factor specifications, providing 800GB of storage capacity. This hard drive is equipped with Intel Enterprise Disk Body, optimized for the 303-404-003A storage expansion shelf in the PowerEdge series storage system, providing ultra-high performance and low latency storage solutions for critical business applications in enterprises.

2.Core specification parameters

Project Specification Description

Brand and Model 118000562-01

Compatible expansion shelf 303-404-003A

Disk model: Intel Enterprise NVMe Disk

Interface type NVMe over PCIe 3.0

Exterior specification U.2 (2.5 inches)

Rated capacity 800 GB

Flash memory type 3D NAND

Sequential reading of performance indicators: 3200 MB/s

Sequential writing: 1200 MB/s

3.Performance characteristics

Ultra-high performance:

Highest sequential read speed: 3200 MB/s

Highest sequential write speed: 1200 MB/s

Random read performance: up to 500000 IOPS

Random write performance: up to 100000 IOPS

Average access latency:<20 μ s

Enterprise level durability:

Daily full disk write count: 3 DWPD

Total number of bytes written: 4.38 TBW

Support continuous operation 24/7

Design service life: 5 years

Advanced data protection:

End to end data protection

A fail-safe mechanism

Advanced LDPC Error Correction

Wear balance technology

4.Technical characteristics

Interface specifications:

PCIe 3.0 x4 interface

NVMe 1.3 protocol

U. 2 (SFF-8639) interface

Support multiple namespaces

Power consumption management:

Working power consumption: 8-12W

Standby power consumption: 4W

dynamic power management

Thermal management function

Environmental specifications:

Working temperature: 0°C to 70°C

Storage temperature: -40°C to 85°C

Working humidity: 5% to 95% RH

5.Compatibility information

Support system:

PowerEdge series servers

VxRail hyper fusion system

NVMe supported storage system

Storage expansion shelf:

Specially optimized for 303-404-003A storage expansion shelf

Support hot swappable installation

Plug and Play configuration

6.Application scenarios

High performance computing:

Database acceleration (Oracle, SQL Server)

Virtualization infrastructure

Cloud infrastructure

Key business applications:

Real time data analysis

High frequency trading system

Virtual Desktop Infrastructure

7.Management and maintenance

Monitoring function:

NVMe Management Interface

Temperature monitoring

S. M.A.R.T. function

Maintenance features:

Hot swappable support

Online firmware upgrade

diagnostic tool

8.Service Support

Technical Support

9.Physical specifications

Size: 100.0 x 69.85 x 14.8 mm

Weight: Approximately 150g

Interface: U.2 (SFF-8639)
