Product Overview

1.Core Title

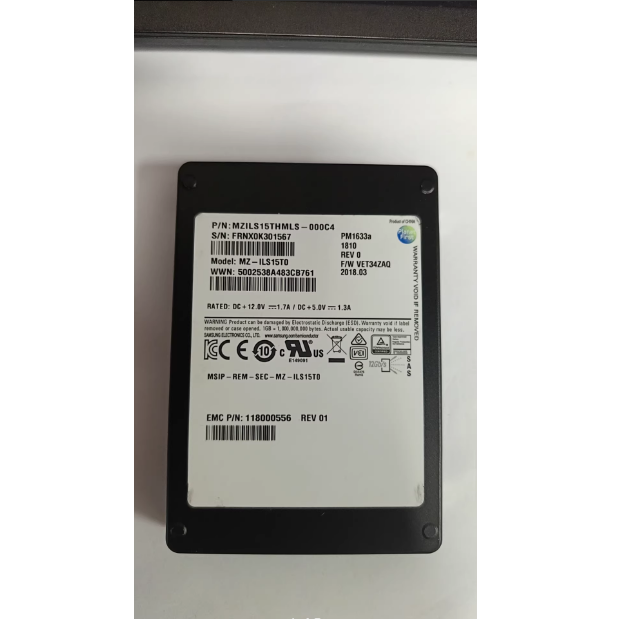

118000556 is a high-capacity enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 15.36TB of storage capacity. This hard drive adopts PM1633A enterprise grade disk body, designed specifically for EMC high-end storage systems, providing high reliability and high-performance storage solutions for enterprise level massive data storage needs.

2.Core specification parameters

Project Specification Description

Brand and Model 118000556

Disk model PM1633A

Interface type SAS-3 (12.0 Gb/s)

Physical specification 2.5 inches

Capacity 15.36 TB

Flash Memory Type: 3D TLC NAND

Read/write performance sequential read: 2100 MB/s

Sequential writing: 1800 MB/s

3.Performance characteristics

High performance:

Sequential read speed: up to 2100 MB/s

Sequential write speed: up to 1800 MB/s

Random read performance: up to 400000 IOPS

Random write performance: up to 80000 IOPS

Average latency:<100 μ s

Enterprise level durability:

Daily full disk write count: 3 DWPD

Total number of bytes written: 84000 TBW

Supports 24/7 uninterrupted operation

Design service life: 5 years

Advanced data protection:

End to end data path protection

Power outage protection (PLP) function

Advanced ECC error correction mechanism

RAID optimization support

4.Technical characteristics

Interface features:

SAS-3 (12.0 Gb/s) interface

Support dual port redundancy

Backward compatible with SAS-2 (6.0 Gb/s)

Support multi-path access

Power consumption management:

Working power consumption: 12-20W

Standby power consumption: 6W

Support energy-saving mode

Dynamic power consumption regulation

Environmental specifications:

Working temperature: 0°C to 55°C

Storage temperature: -40°C to 70°C

Working humidity: 5% to 95% RH

Anti vibration capability: meets enterprise level standards

5.Compatibility information

Support system:

PowerMax series

VMAX All Flash Series

Unity series (compatibility needs to be verified)

Other high-end storage systems that support SAS-3 interface

6.Application scenarios

Big data applications:

data warehouse

Big data analysis platform

Artificial Intelligence/Machine Learning Dataset

Virtualization environment:

Large scale virtualization infrastructure

Cloud infrastructure storage

Virtual Desktop Infrastructure (VDI)

Key applications for enterprises:

Large scale database storage

Archive storage system

Backup and disaster recovery system

Media content storage

7.Management and maintenance

Monitoring function:

S. M.A.R.T. status monitoring

Real time temperature monitoring and warning

Service life monitoring

Performance statistics and reports

Maintenance features:

Support online hot swappable replacement

Firmware online rolling upgrade

Diagnostic tool support

Remote management function

8.Service Support

Technical support: Original factory technical service

9.Physical specifications

Size: 100.0 × 69.85 × 14.8 mm

Weight: Approximately 170g

Interface type: SAS (SFF-8639)

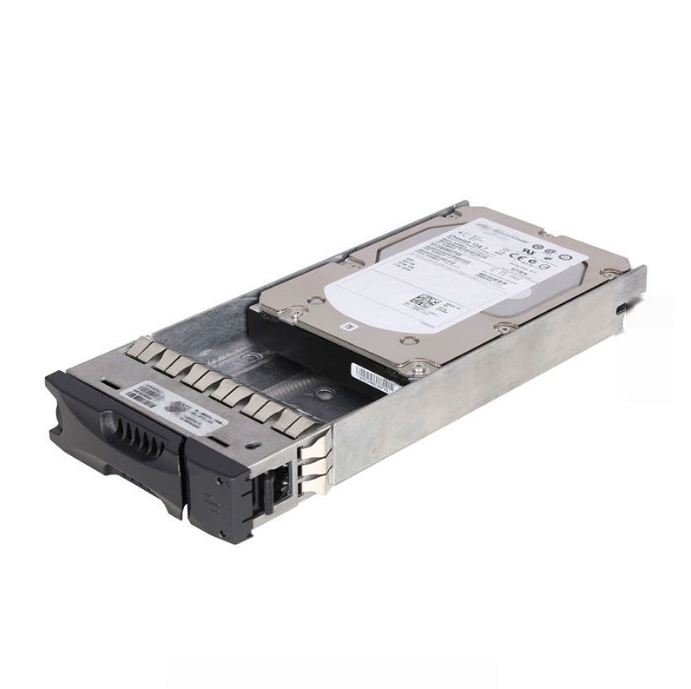

Installation method: 2.5-inch hot swappable bracket
