Product Overview

1.Core Title

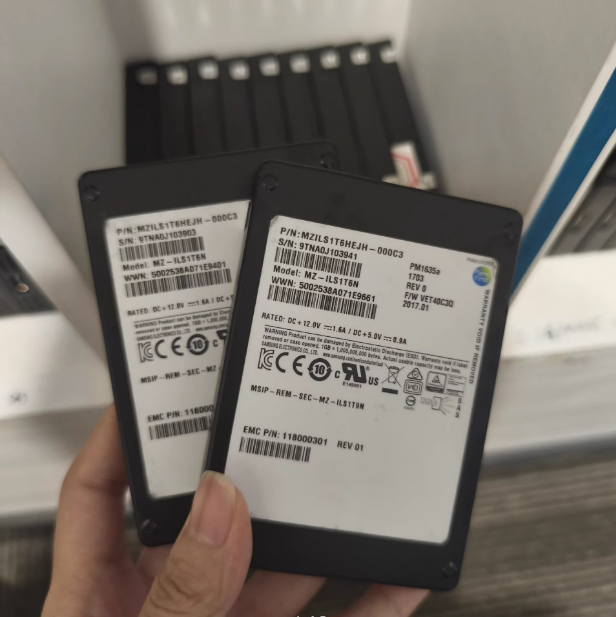

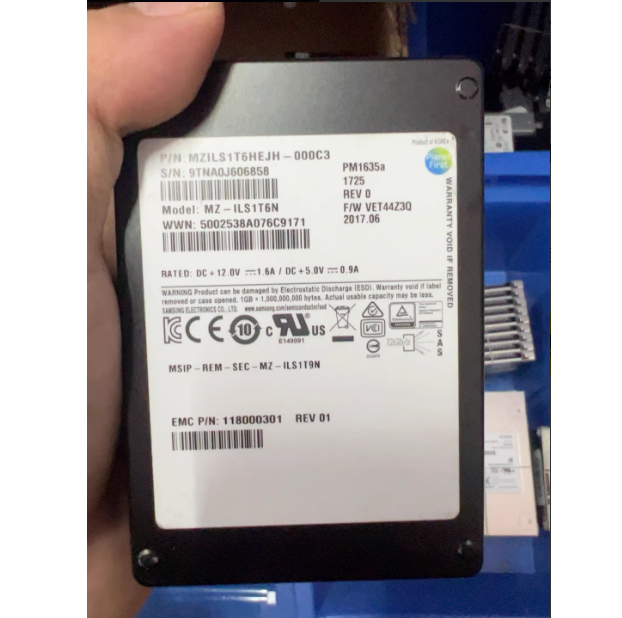

118000301 is an enterprise grade 2.5-inch solid-state drive that uses a 12Gb/s SAS interface and provides 1.6TB of storage capacity. This hard drive is designed specifically for storage systems such as EMC Unity and VNX, and is particularly compatible with the 5052319-storage expansion shelf. It has high performance, high reliability, and excellent stability, making it suitable for enterprise level critical business applications.

2.Core specification parameters

Project Specification Description

Brand and Model EMC 118000301

Compatible with EMC 5052319 storage expansion shelf

Disk model PM1635A

Interface type SAS-3 (12.0 Gb/s)

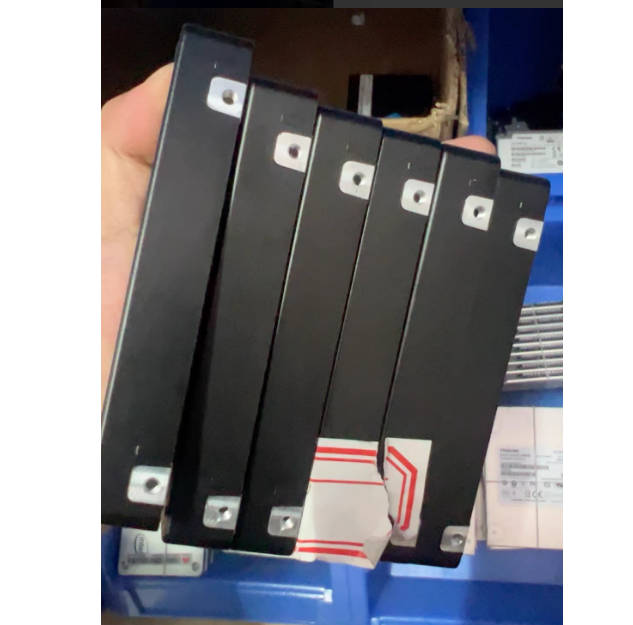

Physical specification 2.5 inches

Capacity 1.6 TB

Flash memory type MLC NAND

Read/write performance sequential read: 1200 MB/s

Sequential writing: 800 MB/s

3.Performance characteristics

High performance:

Sequential read speed: up to 1200 MB/s

Sequential write speed: up to 800 MB/s

Random read performance: up to 180000 IOPS

Random write performance: up to 45000 IOPS

Average latency:<150 μ s

Enterprise level durability:

Daily full disk write count: 5 DWPD

Total number of bytes written: 14.6 TBW

Supports 24/7 uninterrupted operation

Design service life: 5 years

Advanced data protection:

End to end data protection

A fail-safe mechanism

Advanced ECC Error Correction

4.Technical characteristics

Interface features:

SAS-3 (12.0 Gb/s) interface

Support dual port redundancy

Backward compatible with SAS-2 (6.0 Gb/s)

Power consumption management:

Working power consumption: 8-12W

Standby power consumption: 4W

Support energy-saving mode

Environmental specifications:

Working temperature: 0°C to 55°C

Storage temperature: -40°C to 70°C

Working humidity: 5% to 95% RH

5.Compatibility information

Support system:

Unity 300/400/500/600 series

VNX5200/5400/5600/5800/7600/8000

VNXe3200 series

Storage expansion shelf:

Specially optimized for 5052319 storage expansion shelves

Support hot swappable installation

Plug and Play configuration

6.Application scenarios

Database application:

Oracle Database

Microsoft SQL Server

MySQL Cluster

Virtualization environment:

VMware vSphere

Microsoft Hyper-V

Citrix XenServer

Enterprise applications:

File sharing storage

mail server

backup and archive

7.Management and maintenance

Monitoring function:

S. M.A.R.T. status monitoring

Real time temperature monitoring

Health Status Report

Maintenance features:

Supports hot swapping

Online firmware upgrade

Diagnostic tool support

8.Service Support

Technical Support: Service Support

Service level: optional 24 × 7 technical support

9.Physical specifications

Size: 100.0 × 69.85 × 14.8 mm

Weight: Approximately 150g

Interface: SAS (SFF-8639)

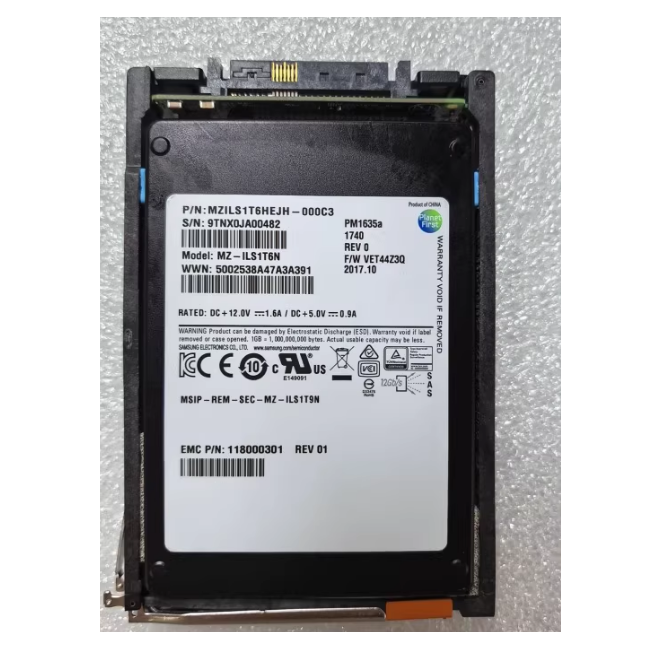

Installation method: 2.5-inch hot swappable bracket
