Product Overview

1.Core Title

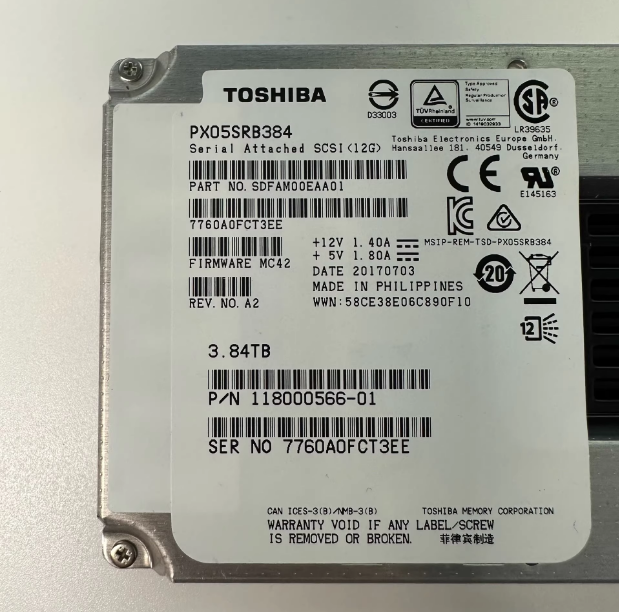

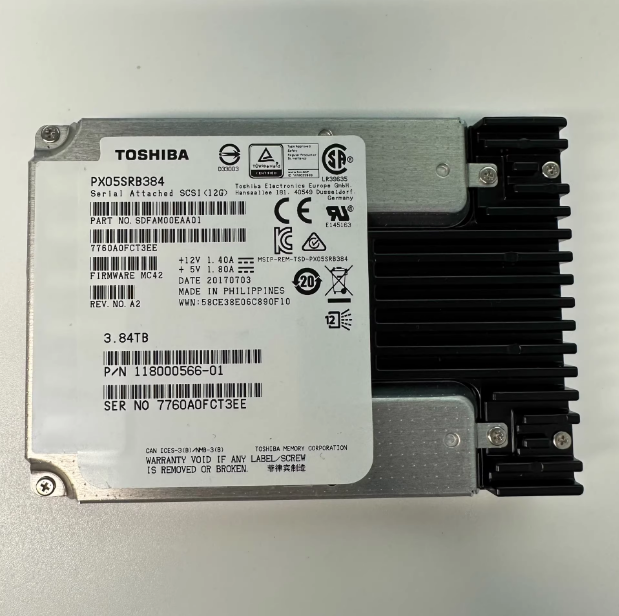

118000566-01 is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 3.84TB of storage capacity. This hard drive is designed specifically for Unity series storage systems, compatible with 5052380 storage expansion shelves, and uses Toshiba enterprise grade disk bodies to provide high reliability storage solutions for critical business operations.

2.Core specification parameters

Project Specification Description

Brand and Model 118000566-01

Compatible with expansion shelf 5052380

Disk manufacturer Toshiba

Interface type SAS-3 (12.0 Gb/s)

Physical specification 2.5 inches

Capacity 3.84 TB

Flash Memory Type: 3D TLC NAND

Read/write performance sequential read: 1800 MB/s

Sequential writing: 1200 MB/s

3.Performance characteristics

High performance:

Sequential read speed: up to 1800 MB/s

Sequential write speed: up to 1200 MB/s

Random read performance: up to 300000 IOPS

Random write performance: up to 60000 IOPS

Average latency:<130 μ s

Enterprise level durability:

Daily full disk write count: 3 DWPD

Total number of bytes written: 21024 TBW

Supports 24/7 uninterrupted operation

Design service life: 5 years

Advanced data protection:

End to end data path protection

Power outage protection (PLP) function

Advanced ECC error correction mechanism

4.Technical characteristics

Interface features:

SAS-3 (12.0 Gb/s) interface

Support dual port redundancy

Backward compatible with SAS-2 (6.0 Gb/s)

Power consumption management:

Working power consumption: 8-14W

Standby power consumption: 4W

Support adaptive power consumption adjustment

Environmental specifications:

Working temperature: 0°C to 55°C

Storage temperature: -40°C to 85°C

Working humidity: 5% to 95% RH

5.Compatibility information

Support system:

Unity 300/400/500/600 series

UnityVSA series

Unity XT series

Storage expansion shelf:

Specially optimized design for 5052380 storage expansion shelf

Support hot swappable installation

Plug and Play configuration

6.Application scenarios

Database application:

Microsoft SQL Server

Oracle Database

MySQL database cluster

Virtualization environment:

VMware HANA virtualization platform

Microsoft Hyper-V Environment

Virtual Desktop Infrastructure (VDI)

Enterprise applications:

File sharing storage

Email server storage

Backup and disaster recovery system

7.Management and maintenance

Monitoring function:

S. M.A.R.T. status monitoring

Real time temperature monitoring and warning

Service life monitoring

Maintenance features:

Support online hot swappable replacement

Firmware online upgrade function

Diagnostic logging

8.Service Support

Technical Support: EMC Original Technical Services

Service level: Optional 4-hour on-site service

9.Physical specifications

Size: 100.0 × 69.85 × 14.8 mm

Weight: Approximately 160g

Interface type: SAS (SFF-8639)

Installation method: 2.5-inch hot swappable bracket
