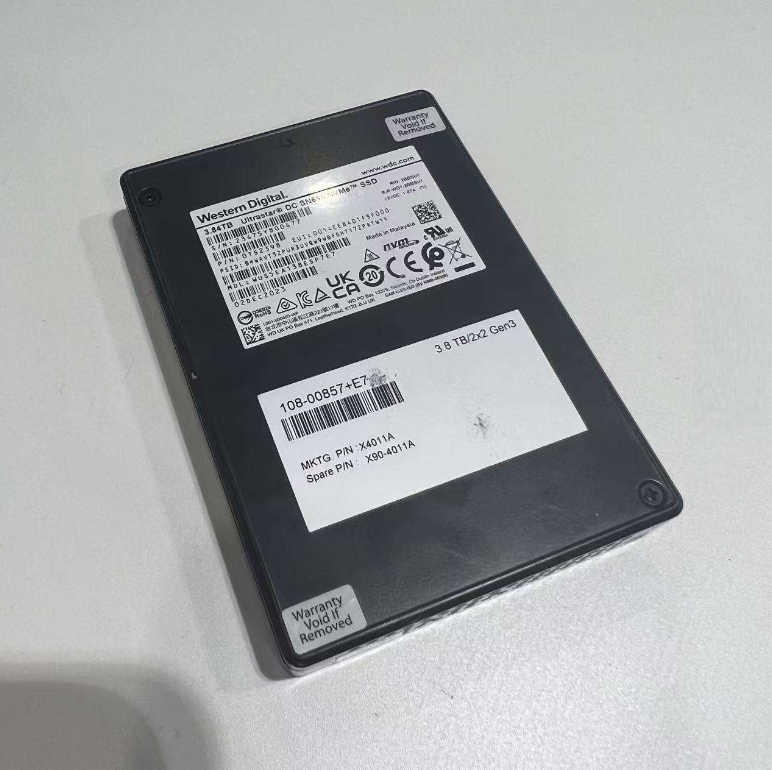

NetApp Enterprise NVMe Solid State Drive -108-00857 (X4011A, PM1733) Product Introduction

   Overview

   NetApp 108-00857 (part number X4011A, disk body model PM1733) is a high-performance NVMe solid-state drive developed by NetApp based on the new generation PCIe 4.0 technology. This model offers a capacity of 3.84TB and adopts a 2.5-inch U.2 interface, designed specifically for NetApp AFF C-series and A-series all flash arrays, providing excellent read and write performance and low latency, suitable for demanding enterprise workloads.

Core specifications and features

Project Specification Description

NetApp model 108-00857

Part number X4011A

Disk model PM1733

Capacity 3.84TB

Interface protocol NVMe 2.0, PCIe 4.0 x4

Appearance specification 2.5 inches U.2 (SFF-8639)

NAND type 96 layer 3D TLC NAND

Durability/Durability 10 DWPD (daily full disk write count during 5-year warranty period)

Total 70.1 PBW (lifetime write)

Performance sequential reading: up to 6800 MB/s

Sequential writing: up to 4200 MB/s

Random read: 1500000 IOPS (4K)

Random Write: 400000 IOPS (4K)

Delay reading delay 90 μ s

Write latency 15 μ s

Power consumption activity power consumption 18W

Idle power consumption 5W

Reliability index MTBF: 2.5 million hours

UBER： 1e

Technical Features

    1. Performance characteristics

Adopting PCIe 4.0 interface, the bandwidth is increased by 100% compared to PCIe 3.0

Supports multiple namespaces (NVMe Sets)

Adaptive Read Write Balance Algorithm

Support end-to-end data protection

    2. Reliability characteristics

Advanced Power Failure Protection (PLP)

Full path data integrity verification

Real time flash health monitoring

Hot swappable and online replacement support

    3. Management function

Support NVMe MI 1.1 management interface

Enhanced S.M.A.R.T. attribute monitoring

Integrated NetApp Active IQ Predictive Analysis

Support remote diagnosis and management

system compatibility

Support platform:

AFF A250/A400/A800 series

AFF C Series Full Flash Array

FAS9500 series hybrid array

System requirements:

ONTAP 9.10.1 or higher version

Recommended ONTAP 9.11.1+

Management tools:

NetApp System Manager 9.10+

Active IQ Unified Manager

ONTAPI Command Line Interface

REST API support

Applicable scenarios

    1. High performance database

Oracle RAC cluster

SAP HANA environment

SQL Server Key Business

    2. Virtualization infrastructure

VMware HANA hyper converged

Microsoft Hyper-V Cluster

VDI Virtual Desktop Environment

    3. Technical application

Artificial Intelligence/Machine Learning

Real time data analysis

High frequency trading system

    4. Enterprise applications

ERP system storage

CRM database

Enterprise File Services
