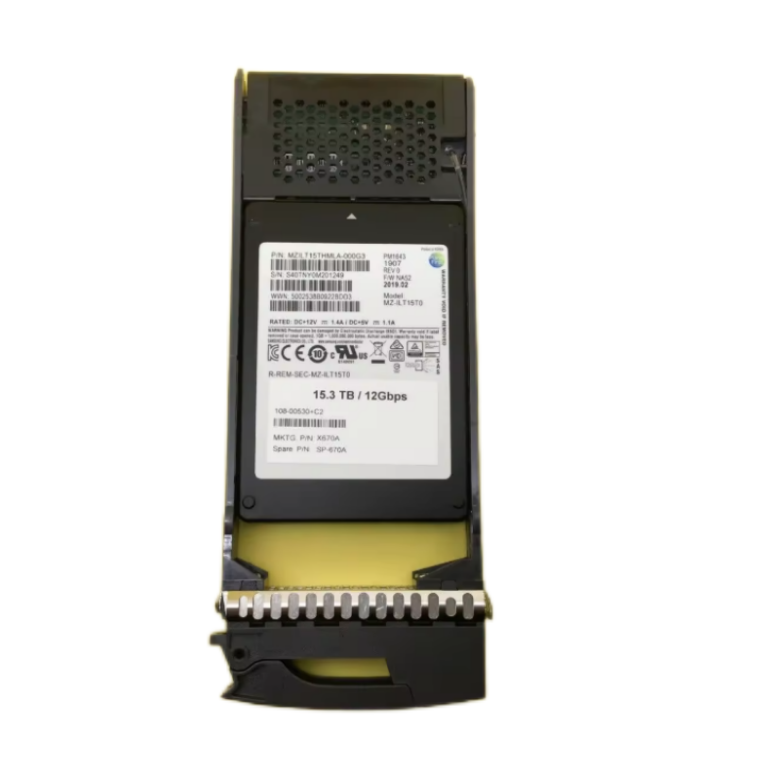

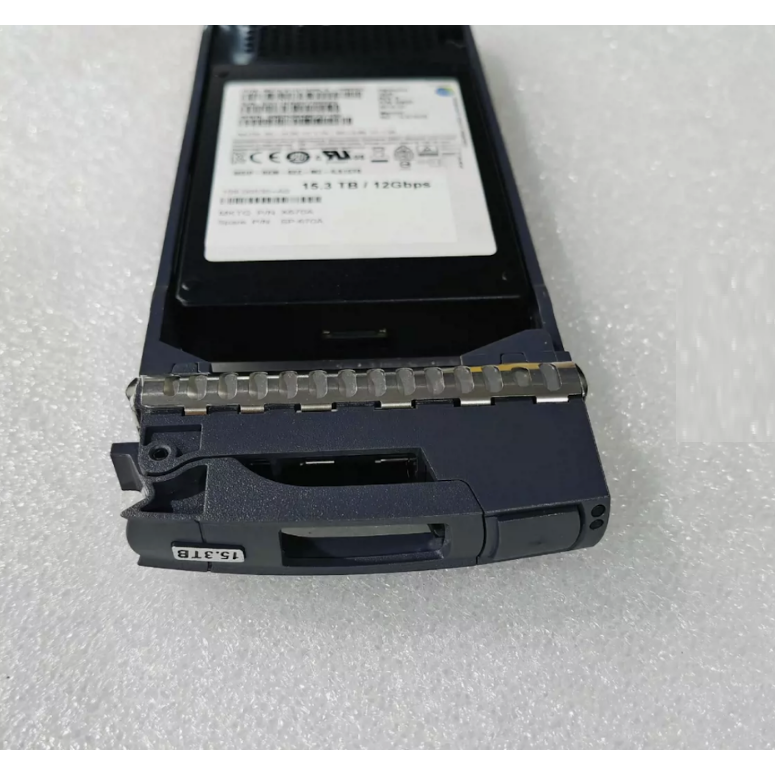

NetApp Enterprise NVMe Solid State Drive -108-00530 (PM1633A) Product Introduction

Overview

     NetApp 108-00530 (drive model: PM1633A) is a high-capacity read intensive NVMe solid-state drive designed and certified by NetApp specifically for its all flash storage systems, such as the AFF series. This model offers a massive capacity of 15.36TB and features a standard 2.5-inch U.2 (SFF-8639) interface, designed to provide a high-density, low total cost of ownership (TCO) all flash storage solution for modern data centers, particularly suitable for large-scale temperature data storage and read intensive application scenarios.

Core specifications and features

Project Specification Description

Product model: NetApp 108-00530

Disk model PM1633A

Capacity: 15.36TB

Interface Protocol NVMe 1.3

Appearance specification 2.5 inches U.2 (SFF-8639)

NAND type 3D TLC NAND

Durability/Durability 1.0 DWPD (Daily Full Disk Write Count during 5-year Warranty)

Total 28 PBW (lifetime write volume)

Performance sequential reading: up to 3500 MB/s

Sequential writing: up to 1200 MB/s

Random read: 500000 IOPS (4K)

Random Write: 35000 IOPS (4K)

Power consumption activity power consumption 14W

Idle power consumption 5W

Reliability index MTBF: 2.5 million hours

UBER 1e (less than 1 read error per 10  17 bits)

      Key feature - ultra-high capacity density: single disk capacity of 15.36TB, significantly improving storage density

Read optimization design: optimized for read intensive workloads

     NetApp deep integration: Pre flashed NetApp custom firmware, supporting ONTAP advanced features

    Excellent energy efficiency: Unit TB power consumption is lower than traditional hard drives

   Quality assurance: rigorously certified and compatibility tested by NetApp

Technical Highlights

Capacity optimization architecture

     Using high-density 3D TLC NAND particles, achieve a capacity of 15.36TB in a standard 2.5-inch form

    Support NetApp capacity optimized storage pool configuration to maximize storage efficiency

Intelligent Data Management

Deeply integrated with NetApp ONTAP system, supporting automatic load balancing

Support NetApp FabricPool automatic layering function

Compatible with NetApp RAID DP and RAID-TEC protection solutions

Enterprise level reliability

Support end-to-end data path protection

Built in advanced ECC error correction algorithm

Support hot swapping and online replacement

Applicable scenarios

Large scale temperature data storage

Enterprise backup and archiving repository

Video surveillance storage

Medical image storage

Read intensive applications

Large Content Resource Library

Data analysis and business intelligence

Software development version library

Cloud infrastructure

Cloud storage backend

Super converged infrastructure capacity layer

Virtualization storage resource pool

system compatibility

Supported platforms: NetApp AFF A-series, C-series all flash arrays

Support system: ONTAP 9.5 and above versions

Recommended configuration: Suitable for NetApp hybrid storage pool configuration

Management Tools: Supports NetApp System Manager, Active IQ
