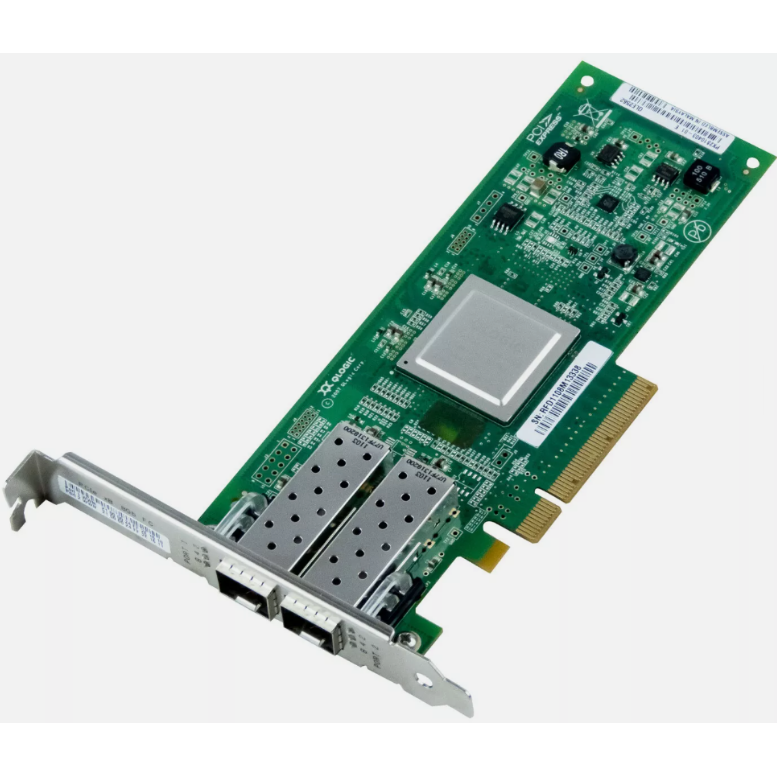

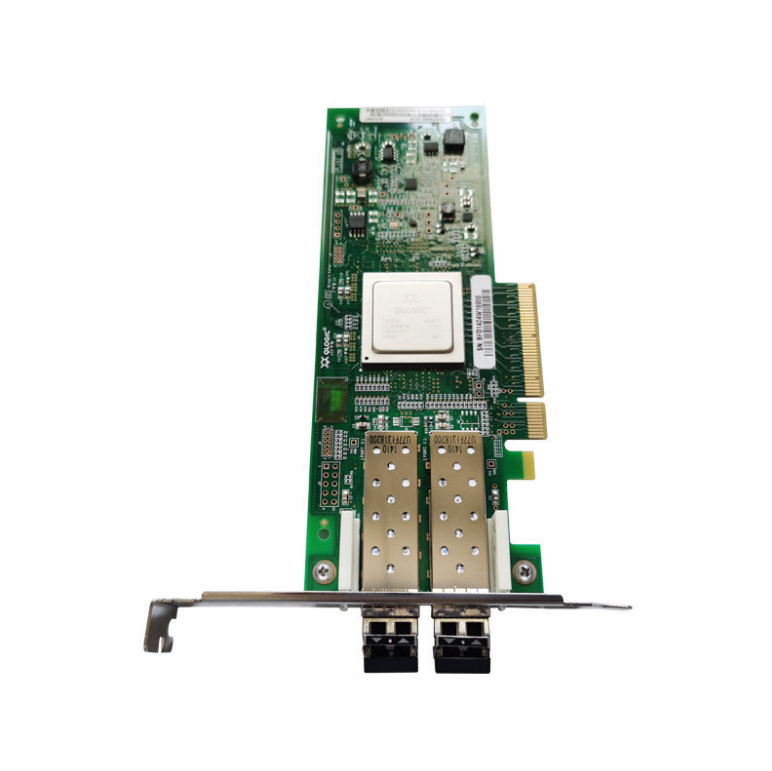

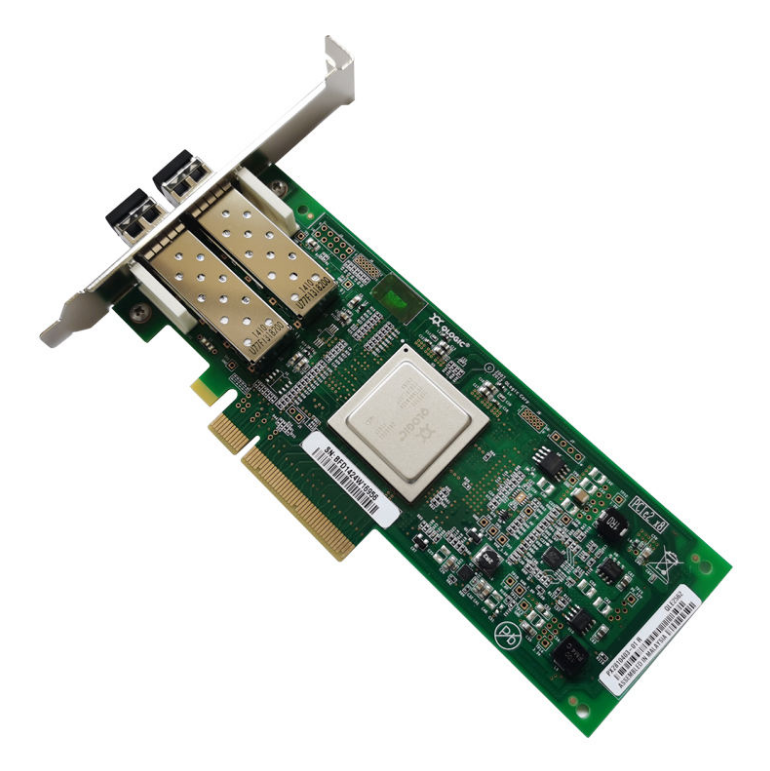

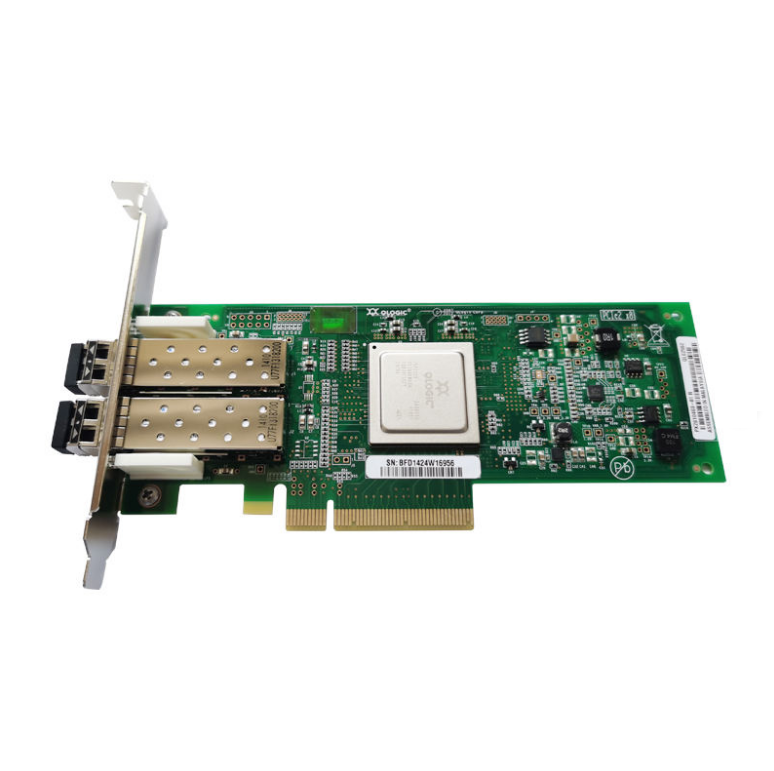

QLogic QLE2562-TPXW4 Dual Port 8Gb Fiber Channel Host Bus Adapter (HBA) Product Introduction

product overview

      QLogic QLE2562-TPXW4 is a high-performance dual port 8Gb fiber channel host bus adapter designed for enterprise storage area networks (SANs), featuring PCIe 2.0 interfaces. This model is particularly suitable for critical business environments that require high availability and redundant connectivity.

Key Features

Dual port high-performance architecture

2 independent 8Gb/s FC ports, with a total bandwidth of up to 1600MB/s

Full duplex data transmission, supporting port level load balancing

Backward compatibility with 4Gb/s and 2Gb/s speeds

Enhanced reliability design

Support multi-path I/O (MPIO) and link redundancy

Protocol processing for hardware acceleration (ISP2432 chipset)

Compliant with FC-PI-4 Rev 8.0 standard

Optimized system integration

PCIe 2.0 x8 Host Interface

Low profile design, suitable for various types of servers

Support hot plug function

Advanced management functions

Onboard diagnostic LED indicator light

Support QLogic SANsurfer management suite

Provide API interfaces for centralized managementtechnical specifications

Port configuration: 2 8Gb FC ports (SFP interface)

Host interface: PCIe 2.0 x8

Protocol support: FC-FS-2, FC-LS2, FCP-3

Power consumption: Maximum 9.5W (dual port full load)

Working temperature: 0 ° C to 55 ° C

Dimensions: Full height/half height baffle available

Application scenarios

Enterprise virtualization platforms (VMware, Hyper-V)

Key Business Database System

High availability cluster environment

Medium scale SAN storage network

Model Description

The suffix "TPXW4" indicates that the model is a specific OEM customized version, which may have:

Customized firmware configuration

Special compatibility optimization

Differentiated technical support policies

Operating system support

Windows Server 2008 R2/2012

Linux(RHEL 6.x, SLES 11)

VMware ESXi 5.x/6.0

Solaris 10/11

Product Highlights

Dual port design provides connection redundancy

Optimized interrupt handling mechanism reduces CPU usage

Supports Jumbo Frame (maximum 2048 bytes)

Comprehensive QoS functionality ensures critical business traffic
