Product Overview

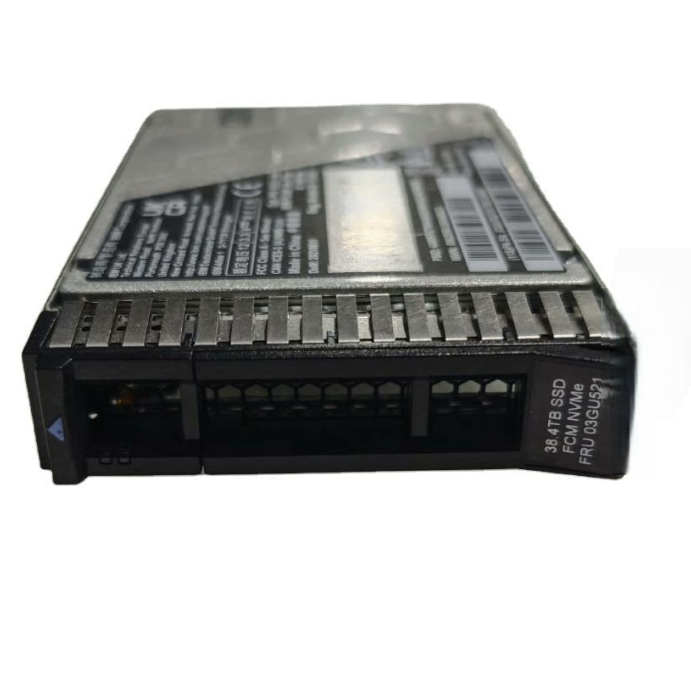

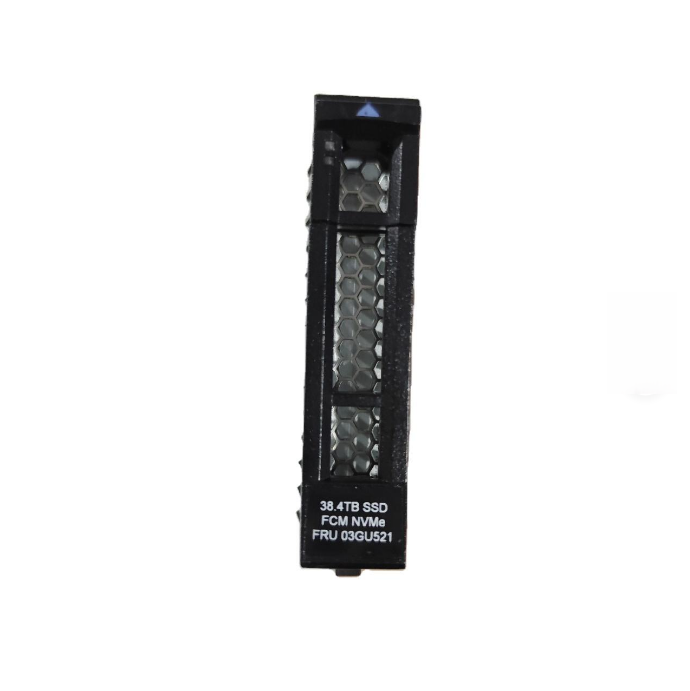

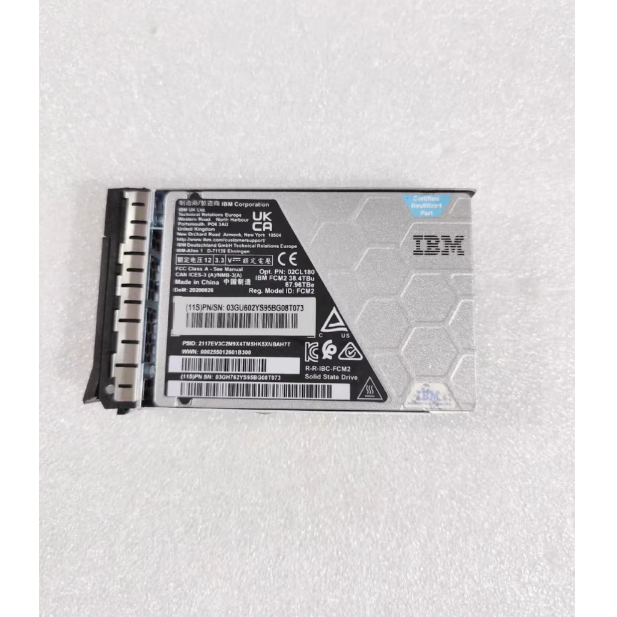

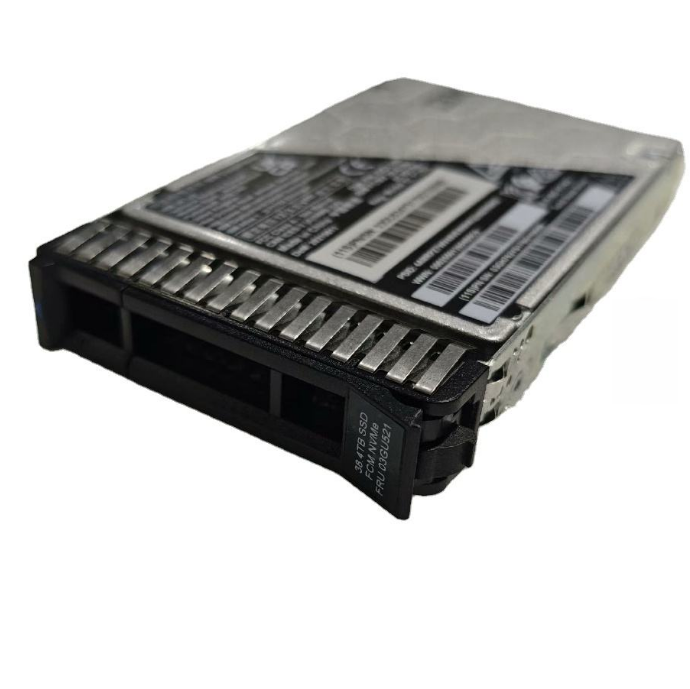

Original All Flash Storage Solution | 38.4TB NVMe PCIe 4.0 Enterprise Solid State Drive (Complete Component Number: 03GH762-03GH472) - Provides industry-leading storage density and performance for enterprise level ultra large-scale data storage

2.Core advantages

Ultimate Performance

Adopting NVMe PCIe 4.0 interface protocol, the sequential read speed reaches up to 15000 MB/s, the sequential write speed reaches 9000 MB/s, and the random read/write performance exceeds 2.5M IOPS, redefining enterprise level storage performance standards

Intelligent cooling system

Equipped with original heat dissipation bracket (03GH472), adopting a three-fan active heat dissipation design, and an intelligent temperature control system to ensure optimal temperature maintenance under full load operation

Original factory quality certification

Specially designed for FlashSystem 9500 optimization, ensuring perfect compatibility with storage systems through rigorous quality testing

Ultra large storage capacity

38.4TB ultra large capacity, using the latest 3D TLC NAND flash technology, a single disk can meet the storage needs of massive data

Enterprise level reliability

Supports 7 × 24-hour uninterrupted operation, with an annual write capacity of 3 DWPD, and provides a 5-year or 210PBW warranty life

3.Technical specifications

Detailed specifications of parameter categories

Hard drive model 03GH762

Bracket model 03GH472

Storage capacity 38.4TB

Interface standard NVMe PCIe 4.0 x4

Appearance specification 2.5 inches U.2

Flash Memory Type: 3D TLC NAND

Includes NVMe drive body and original heat dissipation bracket (03GH472)

Read and write performance: Sequential read: 15000 MB/s | Sequential write: 9000 MB/s

Durability index 3 DWPD (5 years/210PBW)

Compatible with IBM FlashSystem 9500 series

4.Compatible system

Dedicated compatibility platform:

FlashSystem 9500

Storage Virtualize 8.5 and above versions

Spectrum Virtualize

Cloud Pak for Data

5.Application scenarios

Enterprise level key applications:

Artificial Intelligence Training - Supports storage of training datasets for large-scale AI models

High performance computing - large-scale data storage for scientific research computing and engineering simulation

Financial Data Analysis - Real time Risk Control and Transaction Analysis Platform

Media Production -8K/16K Video Production and Media Asset Management

Cloud Infrastructure - Storage Solutions for Ultra Large-Scale Cloud Service Providers

Enterprise Data Center - Storage of Core Business Data for Large Enterprises

6.Quality Assurance

100% original components, providing genuine verification

Passed 144-hour continuous stress test

Provide a complete SMART health status report

Professional technical support services

Support machine validation testing

7.Installation requirements

system requirements

Requires support for IBM Storage Virtualize 8.5 or higher versions

Firmware Version

Must upgrade to the latest IBM system firmware version

environmental conditions

Operating temperature: 5°C to 40°C

Storage temperature: -40°C to 70°C

Humidity: 8% to 90% non-condensing

Installation recommendations

Suggest installation and configuration by technical personnel

8.Service Support

Professional technical consultation - providing complete technical specifications and compatibility guidance

Installation and configuration support - provide detailed installation and configuration documentation

Batch purchase discount - supports enterprise level batch purchase needs

Quick Response Service - Professional Technical Team with 24/7 Support

Spare parts guarantee - providing fast spare parts replacement services
