Product Overview

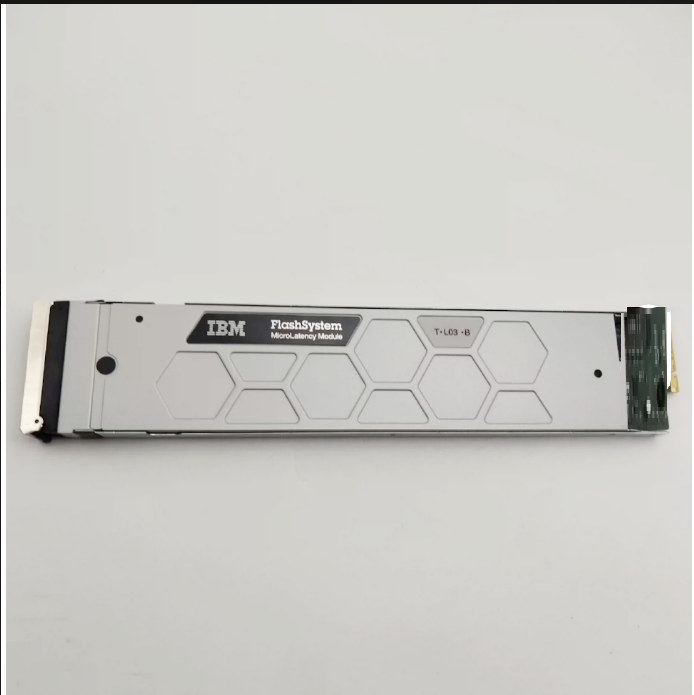

01EK157 is a high-performance enterprise grade NVMe flash core module that utilizes unique Flash Core Module technology. This product provides an effective capacity of 1.92TB and is designed specifically for the FlashSystem series of all flash storage systems, with excellent IO performance and reliability.

Product Identification Description:

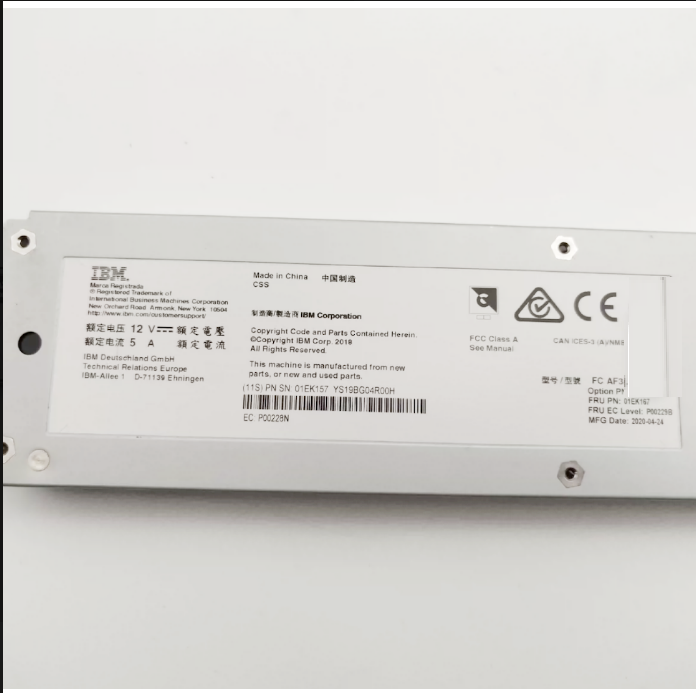

01EK157: FRU number of flash module

FC AF3J: Product Specific Model Code

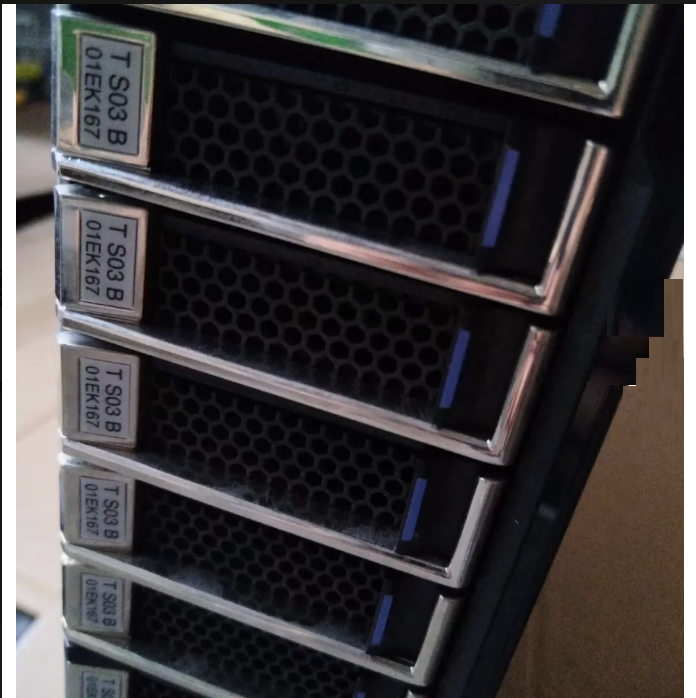

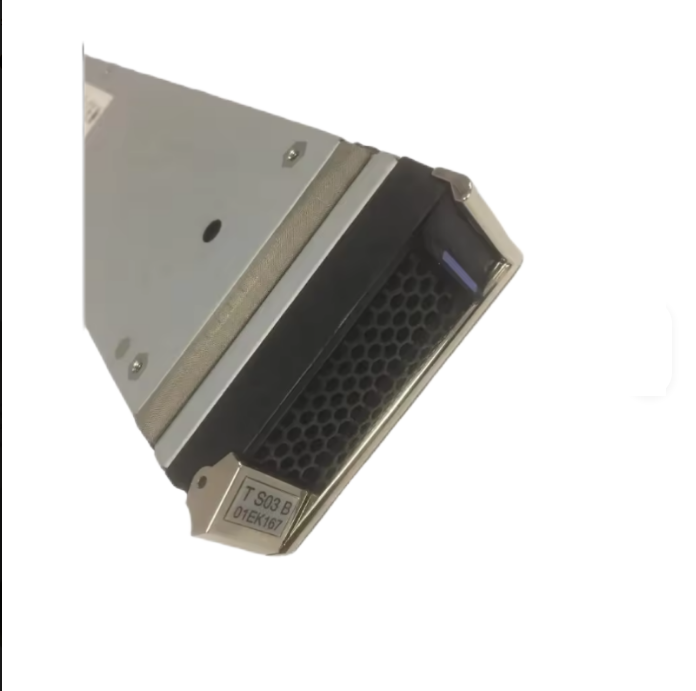

01EK167: Special installation tray FRU number

T S03 B: Capacity code, corresponding to 1.92TB available capacity

2.Technical specifications

Detailed specifications of parameter categories

Product Model 01EK157

Kit model 01EK167

Storage capacity 1.92 TB

Interface type NVMe over PCIe 3.1

Appearance specification 2.5 inches U.2 form

Flash Memory Type: 3D TLC NAND

Read and write performance: sequential read: 3200MB/s, sequential write: 1800MB/s

Durability 3 DWPD (5-year warranty period)

Power consumption running: 12W, idle: 5W

3.Core Features

1. Ultimate performance

NVMe architecture provides ultra-low latency

Sequential read speed up to 3200MB/s

Sequential write speed up to 1800MB/s

Excellent random read and write performance

2. Enterprise level reliability

3 DWPD high durability design

Integrated power-off protection function

End to end data protection

Advanced error correction function

3. Intelligent functions

Integrated hardware compression acceleration

Real time performance monitoring

Intelligent wear balance

Predictive Failure Analysis

4. Easy maintenance

Hot swappable design

Equipped with status indicator light

Plug and play installation

Online firmware upgrade

4.Compatibility information

Support system:

FlashSystem 9100

FlashSystem 9200

FlashSystem 9200R

FlashSystem 9500

System requirements:

Requires NVMe compatible chassis

Backplane supporting U.2 interface

Latest system microcode version

Adequate heat dissipation conditions

5.Application scenarios

Ideal application environment:

High performance databases (Oracle, SQL Server)

Virtualization platforms (VMware, Hyper-V)

Enterprise level application (SAP HANA)

Real time analysis and processing

Cloud computing infrastructure

Performance advantages:

Low latency transaction processing

High concurrency access support

Fast data access

Stable IO performance
