EMC Enterprise NVMe Solid State Drive - Model 118000632/005053159 Product Detailed Description

1. Product Overview

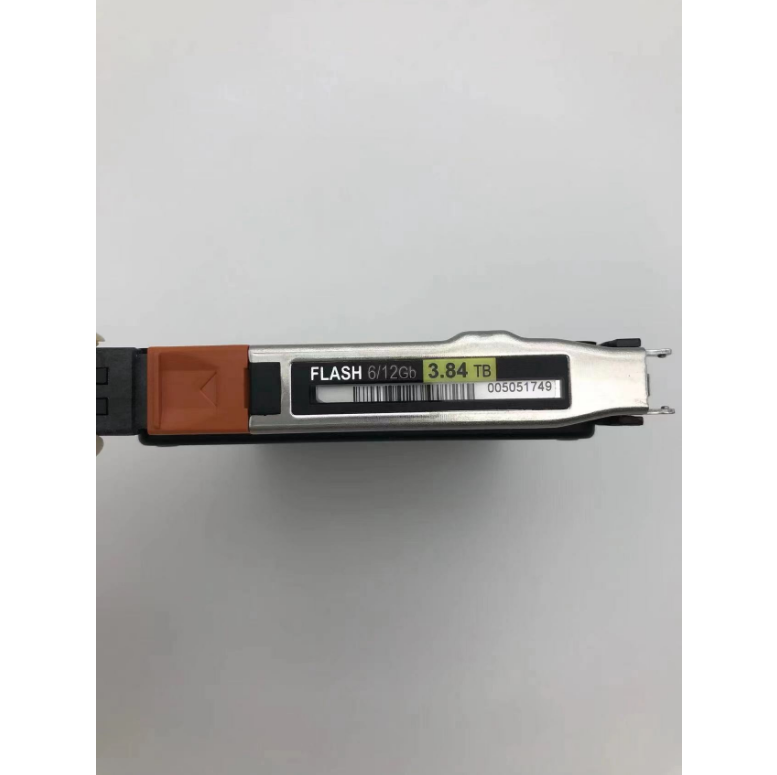

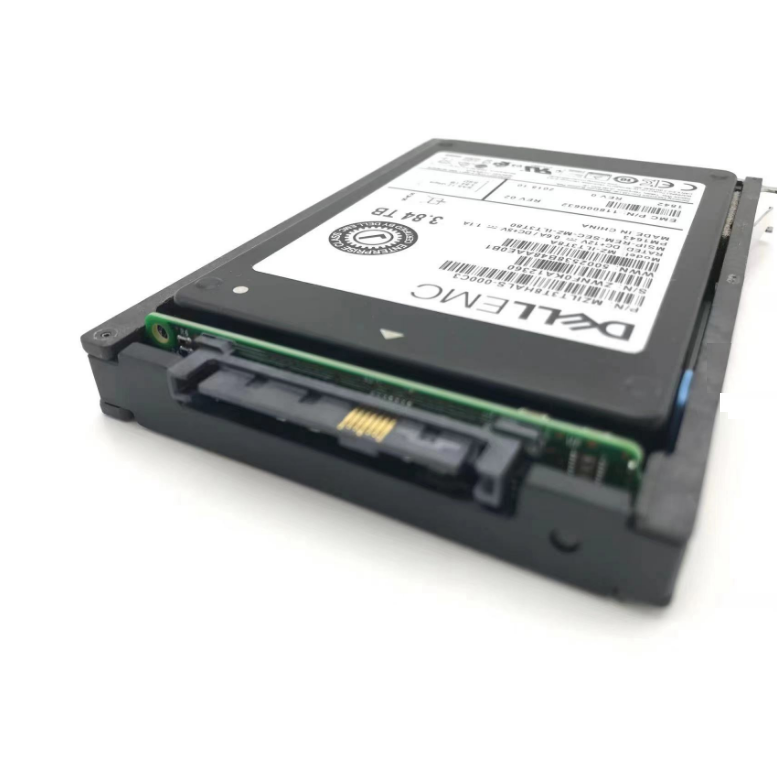

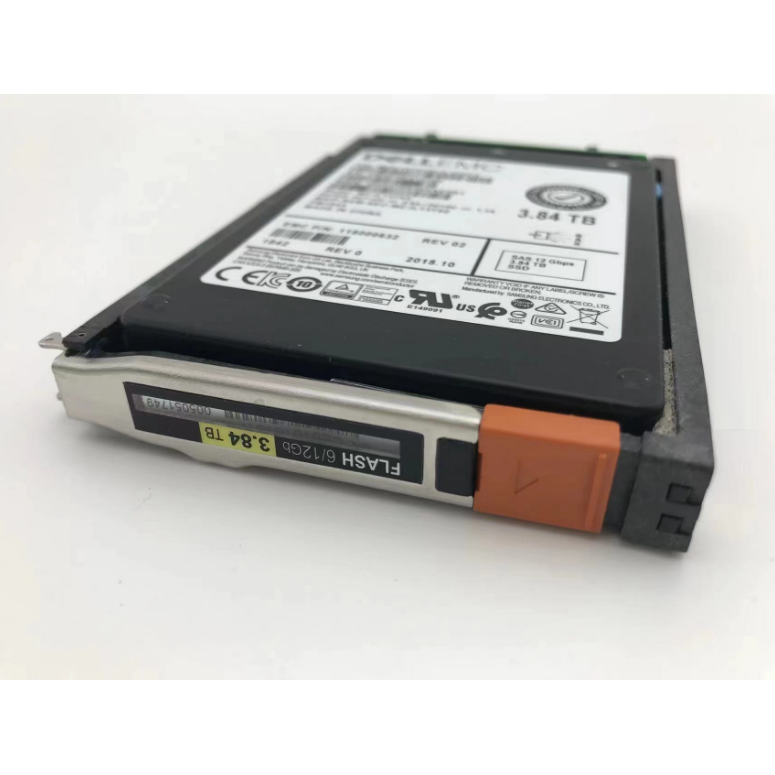

The EMC 118000632 (Alternative Part Number: 005053159, Drive Model PM1643) is a high-performance enterprise-grade NVMe solid-state drive with a capacity of 3.84TB. Utilizing advanced 3D TLC NAND flash technology, this product is based on the PCIe 3.0 interface and NVMe protocol, delivering exceptional storage performance and reliability for enterprise workloads. It serves as an ideal storage solution for building modern data centers.

II. Detailed Technical Specifications

Parameter Category  Detailed Specifications

Basic Information

EMC Component No. 118000632

Alternate part number 005053159

Disk Model: PM1643

Flash memory technology 3D TLC NAND

Interface Protocol: NVMe 1.3 over PCIe 3.0

Physical Dimensions: 2.5-inch U.2 (15mm thickness)

Capacity Information

Nominal Capacity: 3.84TB

Available user capacity ≈3.5TB

Performance parameters

Sequential read speed: 3,400 MB/s

Sequential write speed 2,000 MB/s

4K Random Read 700,000 IOPS

4K Random Write 170,000 IOPS

Read and Write Latency: Read <90μs, Write <18μs

Reliability parameters

Durability Class: 3 DWPD

Service life 21 PBW

Mean Time Between Failures: 2,000,000 hours

Annual failure rate: 0.44%

Warranty Policy: 5-Year Limited Warranty

III. Core Technologies and Features

1. High-Performance Architecture Design

PCIe 3.0 x4 interface, providing 32 Gbps bandwidth

Optimized NVMe 1.3 Protocol Stack

High-performance flash memory controller

Support for multiple namespaces

2. Enterprise-level reliability

Power failure protection mechanism: Super capacitor data protection

End-to-end data protection: comprehensive data integrity verification

Advanced LDPC Error Correction: Powerful Error Correction Capability

Smart Wear Leveling: Dynamic Block Management and Garbage Collection

3. Smart Management Features

Hot-swap support: Compliant with NVMe hot-swap standards

Health Status Monitoring: Enhanced S.M.A.R.T

Temperature Management: Dynamic Thermal Regulation

Remote Management: Supports NVMe-MI Management Interface

4、 Compatibility information

Supported Dell EMC Systems:

Unity Series Storage Arrays (Unity 350F/450F/550F/650F)

PowerEdge MX series servers

VxRail E-series hyper fusion system

PowerMax 2000/8000 series

Operating system support:

VMware HANA 6.7 U3 and above

Windows Server 2019/2022

Red Hat Enterprise Linux 7.9/8.4

SUSE Linux Enterprise Server 15 SP2

5、 Recommended application scenarios

1. Key business of the enterprise

Large scale database systems (Oracle, SQL Server)

Virtualization platform storage

Enterprise Application Server

2. Cloud computing environment

Private cloud storage infrastructure

Hybrid cloud storage solution

Cloud native application storage

3. Data analysis

Business Intelligence Analysis

Big data processing platform

Real time data processing

4. Virtualization deployment

Virtual Desktop Infrastructure (VDI)

Server virtualization platform

Container platform storage

6、 Summary of Product Advantages

performance advantage

Balanced read and write performance

Stable low latency response

Good IOPS performance

Reliability advantage

Enterprise level durability design

A comprehensive data protection mechanism

Long life cycle guarantee

cost advantage

Optimized total cost of ownership

High energy efficiency design

Low maintenance cost

7、 Environmental specifications

Parameter specifications

Working temperature: 0 ° C to 55 ° C

Storage temperature -40 ° C to 70 ° C

Working humidity 8% to 90% non condensing

Working altitude of 3000 meters

Typical power consumption 10-12W

Maximum power consumption 18W

Anti vibration 5.0 Grms (5-800 Hz)
