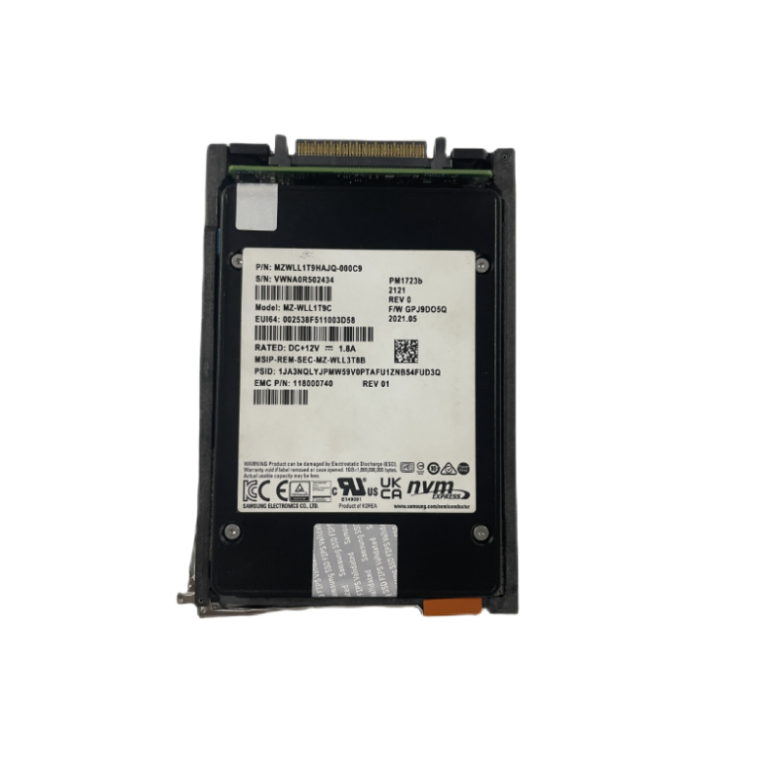

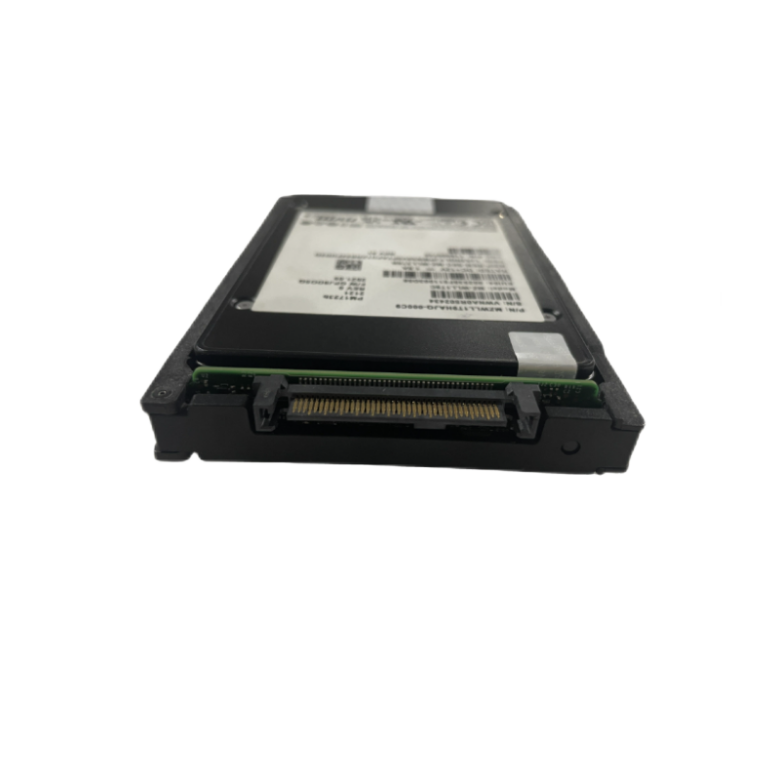

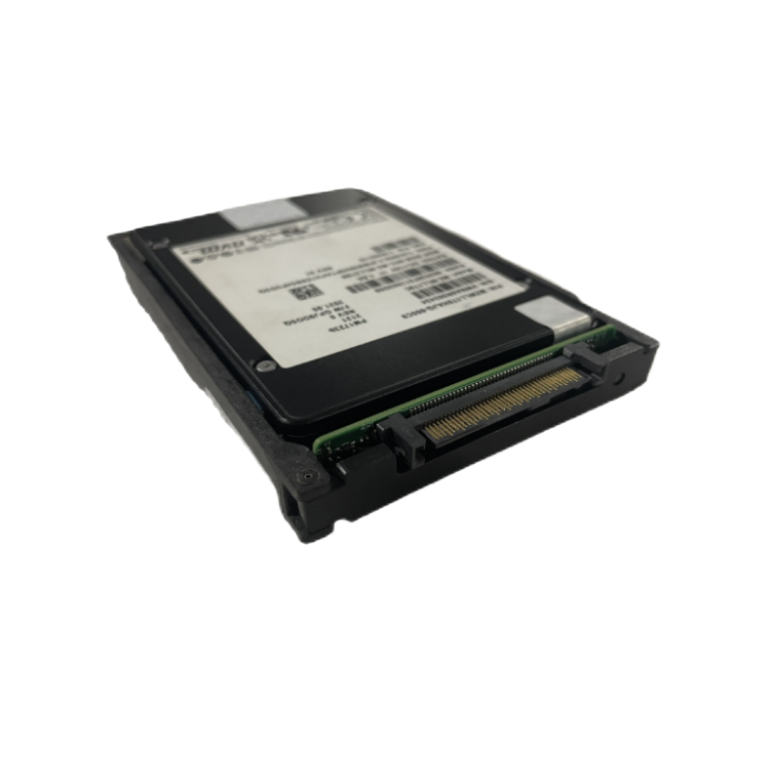

EMC Enterprise NVMe Solid State Drive - Model 118000740 Product Details

1、 Product Overview

EMC 118000740 (disk body model PM1723B) is a high-performance enterprise grade NVMe solid state drive with a capacity of 1.92TB. The product uses advanced 3D TLC NAND flash technology, based on PCIe 4.0 interface and NVMe protocol, designed specifically for high demand workloads in modern data centers, achieving a perfect balance between performance, reliability, and cost-effectiveness.

2、 Detailed technical specifications

Detailed specifications of parameter categories

Basic Information

EMC part number 118000740

Disk model PM1723B

Flash technology 3D TLC NAND

Interface protocol NVMe 1.4 over PCIe 4.0

Appearance specification 2.5 inches U.2 (7mm thickness)

Capacity information

Nominal capacity 1.92TB

User available capacity ≈ 1.75TB

performance parameters

Sequential read speed 6800 MB/s

Sequential write speed 3500 MB/s

4K random read 950000 IOPS

4K random write 220000 IOPS

Read/write delay: Read<70 μ s, write<12 μ s

Reliability parameters

Durability level 3 DWPD

Service life 10.5 PBW

Mean time between failures 2500000 hours

Annual failure rate 0.35%

Warranty Policy 5-year Limited Warranty

3、 Core Technologies and Characteristics

1. High performance architecture

PCIe 4.0 x4 interface, providing a transfer rate of 16 GT/s

Support multiple namespaces and SRIOVs

Optimized parallel processing architecture

Low power and high-performance controller

2. Enterprise level reliability

Full path power-off protection: enhanced supercapacitor

End to end data protection: complete data integrity verification

Advanced LDPC Error Correction: Fourth Generation LDPC Error Correction

Intelligent Health Monitoring: Real time Flash Health Management

3. Intelligent management function

Hot swappable support: Compliant with NVMe hot swappable standards

Telemetry: Real time performance monitoring

Intelligent temperature control: Multi zone temperature sensor

Remote management: NVMe MI 1.1 management interface

4、 Compatibility information

Supported Dell EMC Systems:

PowerMax 2500/8500 Full Flash Array

Unity XT 380F/480F/680F/880F

PowerEdge MX series servers

VxRail P Series/V Series

Software environment support:

VMware HANA 7.0 U2 and above

Windows Server 2022

Red Hat Enterprise Linux 8.4 and above

SUSE Linux Enterprise Server 15 SP3

5、 Recommended application scenarios

1. Key business of the enterprise

Medium sized database systems (Oracle, MySQL)

Virtualization platform storage

Enterprise Application Server

2. Cloud computing environment

Private cloud storage infrastructure

Hybrid cloud storage solution

Cloud native application storage

3. Data analysis

Real time data processing

Business Intelligence Analysis

Machine learning inference workload

4. Virtualization deployment

Virtual Desktop Infrastructure (VDI)

Server virtualization

Container platform storage
