EMC Enterprise NVMe Solid State Drive - Model 118033280 Product Detailed Description

I. Product Overview

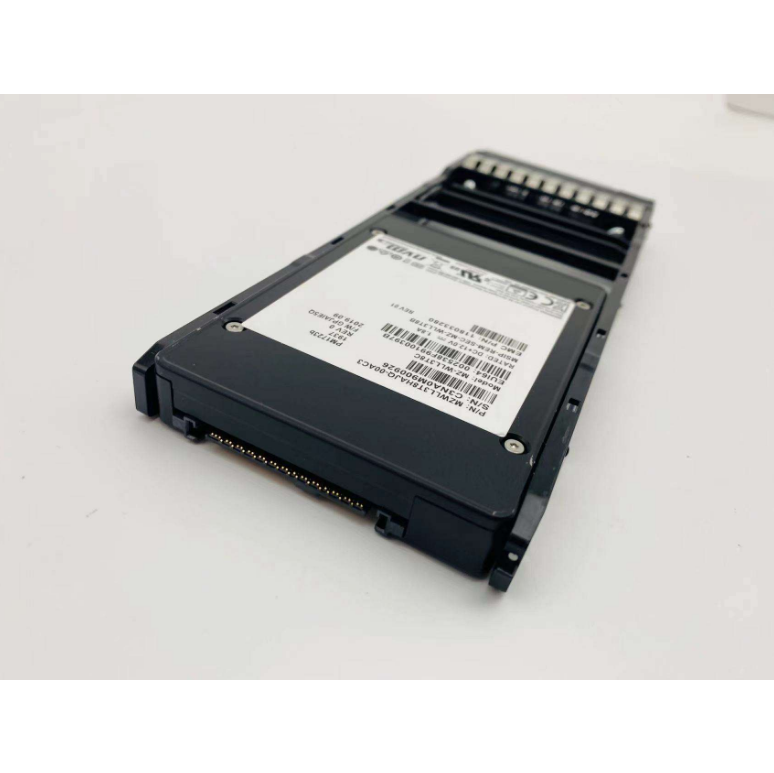

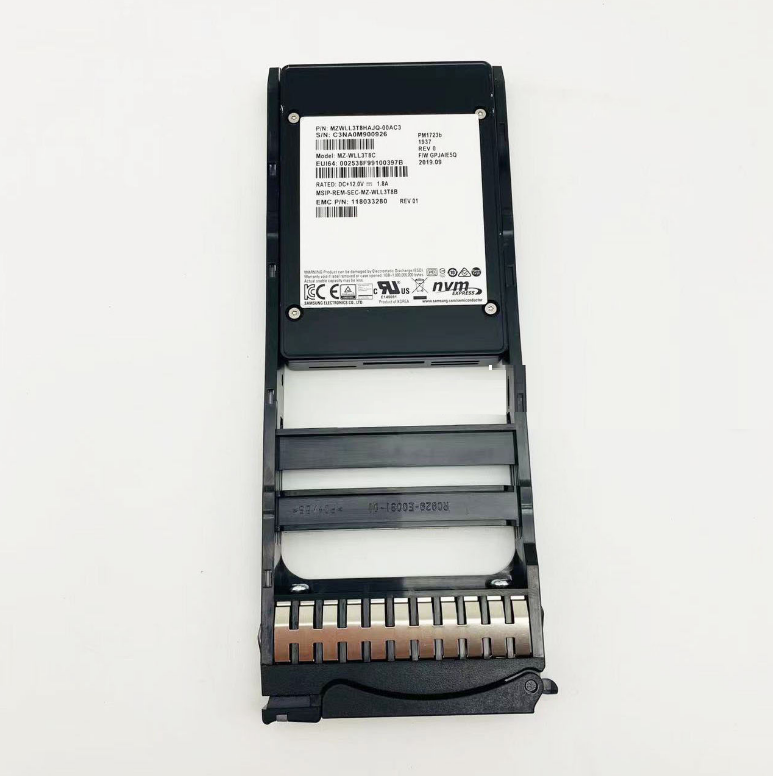

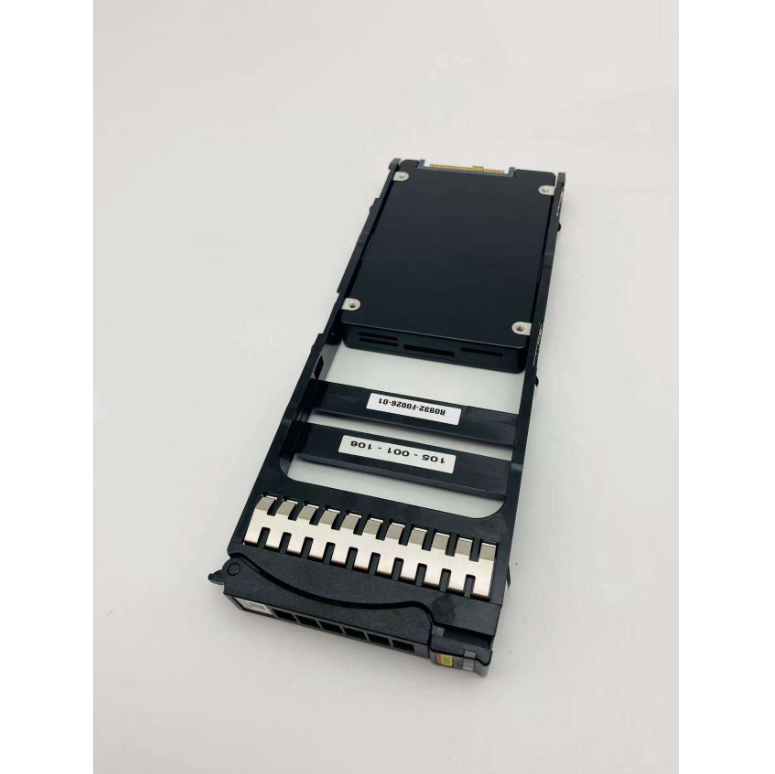

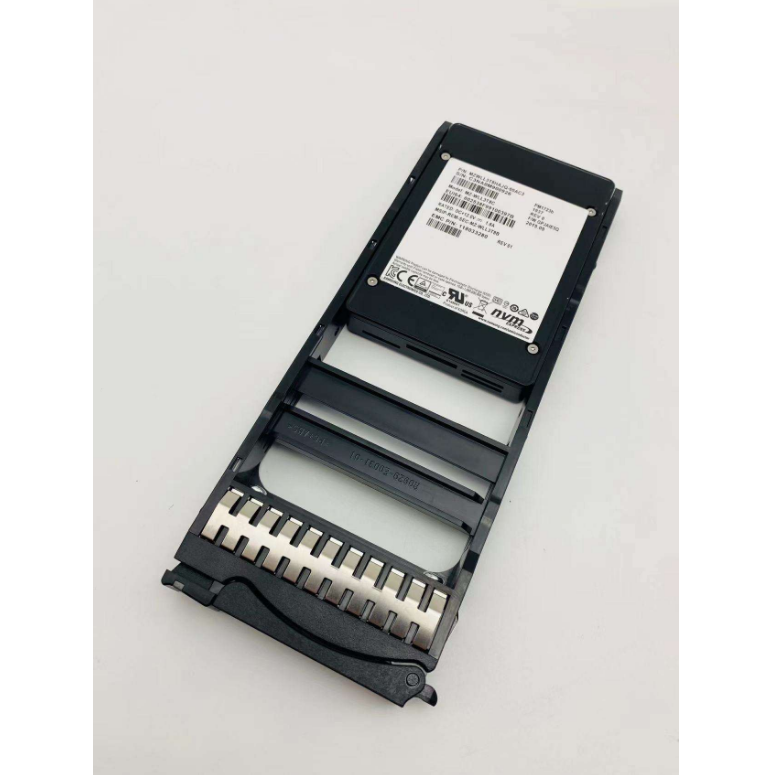

The EMC 118033280 (Part No.: 005053079/005053504, Drive Model PM1723B) is a high-performance enterprise-grade NVMe SSD with a capacity of 3.84TB. This product utilizes advanced 3D TLC NAND flash technology and a PCIe 4.0 interface, specifically designed for modern enterprise mission-critical workloads, achieving an optimal balance between performance, capacity, and cost-effectiveness.

II. Detailed Technical Specifications

Parameter Category Detail Specifications

Basic Information

EMC Part Number 118033280

Replacement part number 005053079 / 005053504

Platter Model: PM1723B

Interface Protocol: NVMe over PCIe 4.0

Form Factor: 2.5-inch U.2

Capacity information

Nominal Capacity: 3.84TB

Available capacity ≈3.5TB

Performance parameters

Sequential read speed 6,800 MB/s

Sequential write speed: 4,000 MB/s

4K Random Read 1,200,000 IOPS

4K Random Write 280,000 IOPS

Read and Write Latency

Read <70μs, Write <12μs

Reliability parameters

Durability Rating 5 DWPD

Service life: 35 PBW

Mean Time Between Failures: 2,500,000 hours

Warranty Policy: 5-Year Limited Warranty

III. Core Technologies and Features

1. High-performance architecture

PCIe 4.0 x4 interface, offering a rate of 16 GT/s

Supports all features of the NVMe 1.4 standard

Optimized Parallel Processing Architecture

Dynamic Power Management

2. Enterprise-level Reliability

Full-path power-off protection: Super capacitor protection mechanism

End-to-end data integrity: Complete CRC checksum protection

Advanced LDPC Error Correction: Powerful Error Correction Capability

Intelligent Wear Leveling: Dynamic Block Management Algorithm

3. Intelligent Management Function

Hot-swapping support: Online maintenance capability

Enhanced Monitoring: S.M.A.R.T. Attribute Monitoring

Temperature Management: Dynamic Thermal Throttling

Remote Management: NVMe-MI Management Interface

4、 Compatibility information

Supported Dell EMC Systems:

PowerMax Series: PowerMax 2000/8000

Unity XT series

PowerEdge MX Series

VxRail hyper fusion system

Operating system support:

Windows Server 2019/2022

Red Hat Enterprise Linux 7/8/9

VMware ESXi 6.7/7.0/8.0

SUSE Linux Enterprise Server 15

5、 Recommended application scenarios

1. Key applications for enterprises

Large scale database systems (Oracle, SQL Server)

SAP HANA in memory computing

Enterprise Resource Planning System

2. Virtualization environment

Large scale VDI deployment

Server virtualization platform

Containerized application storage

3. Cloud data center

Software defined storage

Hybrid cloud storage solution

Cloud native application storage

4. Data analysis

Real time data processing

Business Intelligence Analysis

AI/machine learning workloads

6、 Summary of Product Advantages

performance advantage

Excellent read and write throughput

Ultra low latency response

Stable service quality

Capacity advantage

Optimized storage density

Efficient capacity utilization

Good scalability

management advantage

Deep integration with Dell EMC management tools

Simplified operation and maintenance management

Intelligent monitoring and warning

7、 Environmental specifications

Parameter specifications

Working temperature: 0 ° C to 55 ° C

Storage temperature -40 ° C to 70 ° C

Working humidity 8% to 90% non condensing

Working altitude of 3000 meters

Typical power consumption 10-12W

Maximum power consumption 18W

Anti vibration 5.0 Grms (5-800 Hz)
