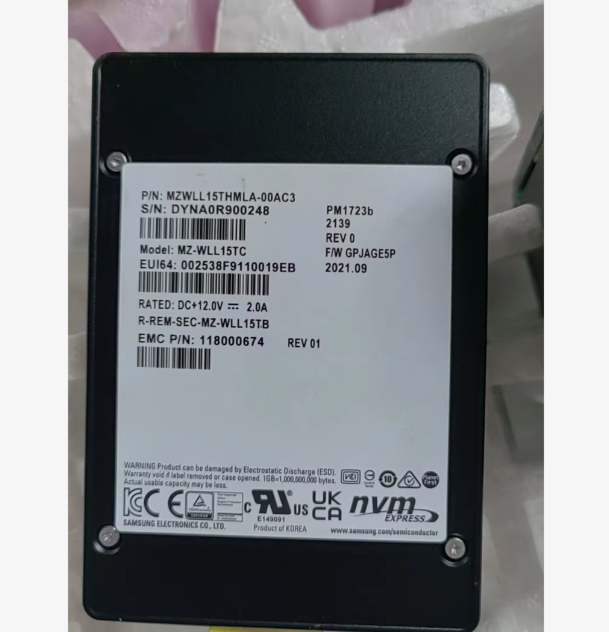

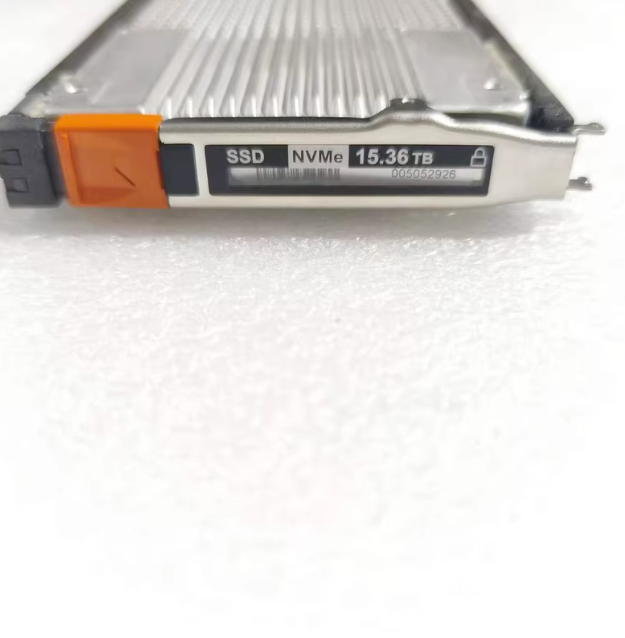

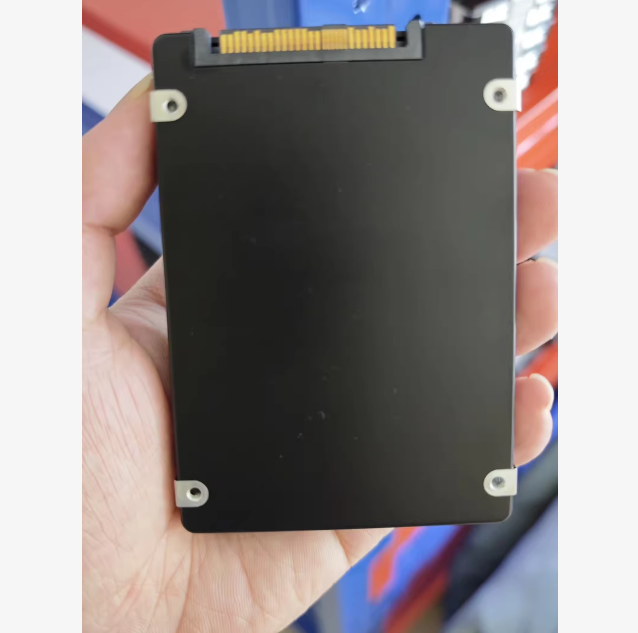

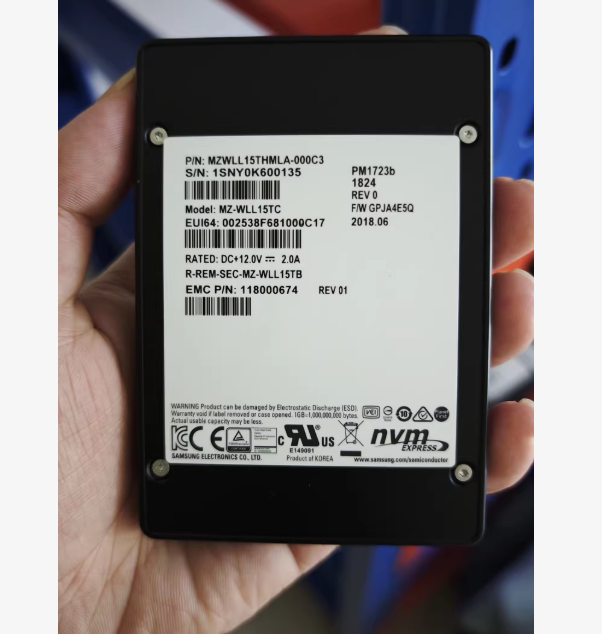

EMC Enterprise NVMe Solid State Drive - Model 118000674 Product Detailed Description

I. Product Overview

The EMC 118000674 (Model PM1723B) is an enterprise-grade NVMe SSD with an ultra-high capacity of up to 15.36TB. This product represents the pinnacle of current enterprise storage technology, featuring the latest 3D TLC NAND flash memory and PCIe 4.0 interface, specifically designed for data-intensive workloads. It sets new industry standards in storage density, performance, and reliability.

II. Detailed Technical Specifications

Parameter Category Technical Specifications

Basic Information

EMC Part Number 118000674

Disk Model: PM1723B

Interface Protocol: NVMe over PCIe 4.0

Physical Dimensions: 2.5-inch U.2

Capacity information

Nominal Capacity: 15.36TB

Available capacity ≈14.0TB

Performance parameters

Sequential read speed: 7,200 MB/s

Sequential write speed: 4,500 MB/s

4K Random Read: 1,600,000 IOPS

4K Random Write 350,000 IOPS

Read and Write Latency

Read <60μs, Write <8μs

Reliability parameters

Durability rating: 3 DWPD

Service life: 84 PBW

Mean Time Between Failures: 2,500,000 hours

Annual failure rate: 0.35%

Warranty Policy: 5-Year Limited Warranty

III. Core Technologies and Features

1. Innovative Architecture Design

PCIe 4.0 x4 interface, offering a transmission rate of 16 GT/s

Supports all advanced features of the NVMe 1.4 standard

Innovative NAND Flash Packaging Technology

Intelligent power management, optimizing energy efficiency ratio

2. Enterprise-Level Reliability Engineering

Multi-layer power failure protection: dual protection with supercapacitor and flash memory backup

End-to-end data protection: Complete data integrity verification

Advanced RAID Protection: Chip-level Redundancy Protection

Smart Error Recovery: Real-Time Error Detection and Repair

3. Advanced Management Features

Hot-swapping support: Online maintenance and replacement

Predictive Analysis: Machine Learning-Based Fault Prediction

Intelligent Temperature Regulation: Multi-zone Temperature Monitoring

Remote Management: Full NVMe-MI Management Support

IV. Compatibility Information

Supported Dell EMC Systems:

PowerMax Series: PowerMax 2500/8500

Unity XT Series: 880F/680F

PowerEdge MX Series

VxRail Hyper-Converged System

Software Environment Support:

VMware vSphere 7.0 or later

Windows Server 2022

Red Hat Enterprise Linux 8/9

SUSE Linux Enterprise Server 15 SP3

V. Recommended Application Scenarios

1. Ultra-large-scale data centers

Converged infrastructure

Software-defined Storage Platform

Cloud service provider infrastructure

2. Key Business Operations

Large data warehouse

Enterprise Resource Planning System

Key business database

3. High-performance computing

Artificial Intelligence Training Platform

Machine learning workloads

Scientific Computing Simulation

4. Data-intensive applications

4K/8K video processing

Genomic sequencing analysis

Financial Risk Modeling

VI. Summary of Product Advantages

Capacity advantage

Industry-leading storage density

Optimized spatial efficiency

Significantly reduce total cost of ownership

Performance advantage

Excellent Throughput Performance

Ultra-low latency response

Stable service quality guarantee

Reliability advantage

Enterprise-grade durability design

Multi-layer data protection mechanism

Predictive maintenance capability

VII. Environmental Specifications

Parameter  Specification

Operating temperature: 0°C to 55°C

Storage temperature: -40°C to 70°C

Operating Humidity: 8% to 90% Non-condensing

Working altitude: 3,050 meters

Typical power consumption: 14-16W

Maximum power consumption: 25W

Vibration resistance: 5.0 Grms (5-800 Hz)
