Product Overview

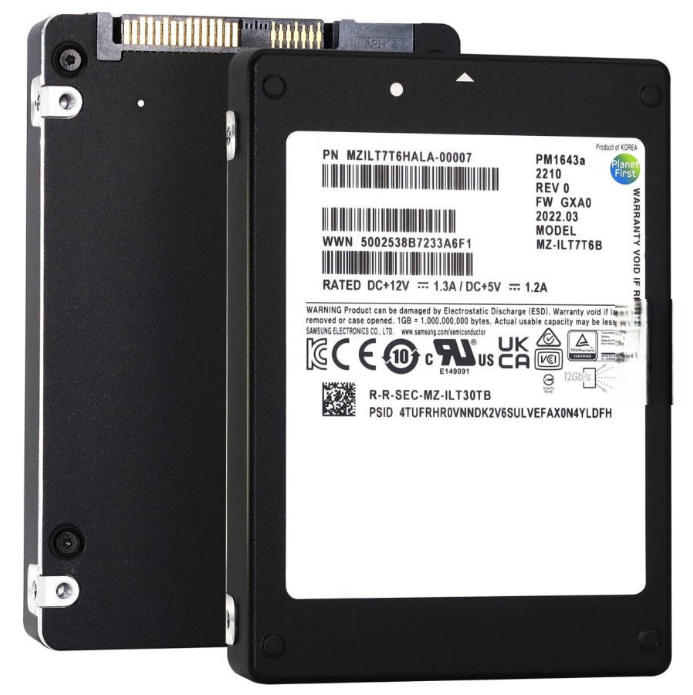

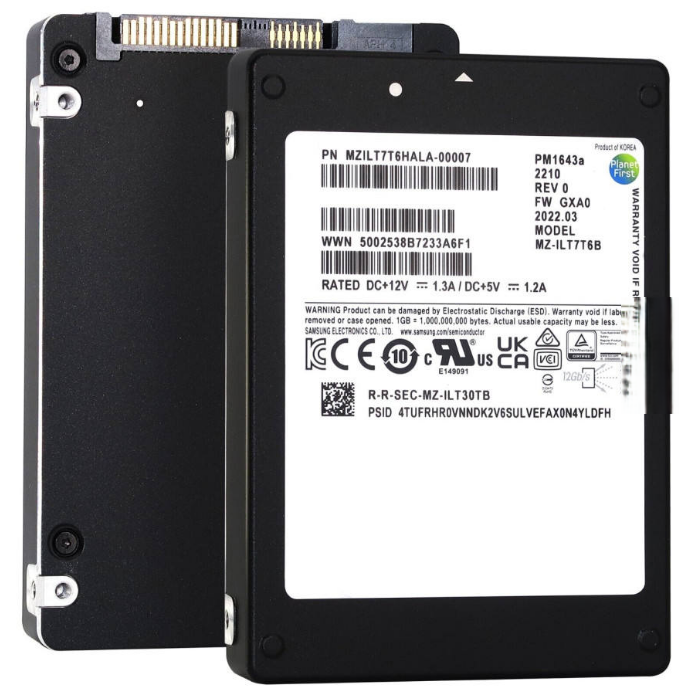

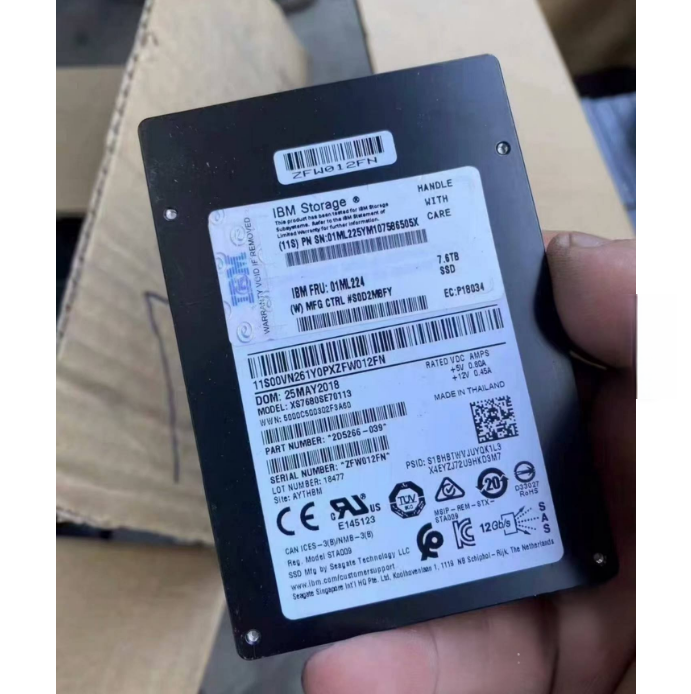

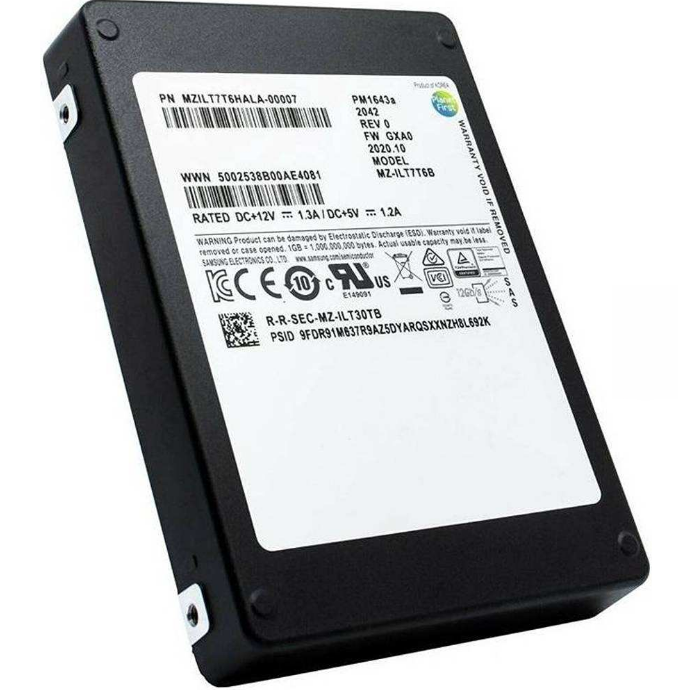

02WF116 and 02WF117 are two high-performance enterprise grade solid-state drives that feature a 12Gb/s SAS interface and a 2.5-inch form factor, providing 7.68TB of storage capacity. These two hard drives are designed specifically for Power Systems and Storage systems, with excellent read and write performance, high reliability, and outstanding stability, suitable for enterprise level critical business application scenarios.

2.Core specification parameters

Project Specification Description

Brand and Model 02WF116/02WF117

Interface type SAS-3 (12.0 Gb/s)

Physical interface SFF-8639 (2.5 inches)

Capacity 7.68 TB

Flash Memory Type: 3D TLC NAND

Read/write performance sequential read: 2100 MB/s

Sequential writing: 1900 MB/s

Durability index DWPD: 3 (5-year warranty period)

TBW：42,000 TB

3.Performance characteristics

Excellent performance:

Sequential read speed up to 2100 MB/s

Sequential write speed up to 1900 MB/s

Random read performance: up to 400000 IOPS

Random write performance: up to 200000 IOPS

Average latency:<100 μ s

Enterprise level durability:

Daily full disk write count: 3 DWPD

Total number of bytes written: 42000 TBW

Supports 24/7 uninterrupted operation

Design service life: 5 years

Advanced data protection:

End to end data path protection

Power outage protection for data security

Advanced ECC error correction function

RAID optimization support

4.Technical characteristics

Interface protocol:

SAS-3 (12.0 Gb/s)

Support dual port redundancy

Backward compatible with SAS-2 (6.0 Gb/s)

Support multi-path access

Power consumption management:

Working power consumption: 8-15W

Standby power consumption: 4-6W

Support adaptive power consumption adjustment

Energy saving mode power consumption:<3W

Environmental specifications:

Working temperature: 0°C to 55°C

Storage temperature: -40°C to 70°C

Working humidity: 5% to 95% RH

Anti vibration: Supports enterprise level environments

5.Compatibility information

Support system:

Power Systems (POWER9, POWER10)

FlashSystem 5x00 series

FlashSystem 7x00 series

Storwize V5000/V7000 series

System x series servers

Chassis compatibility:

Supports standard 2.5-inch hard drive bays

Support hot swappable installation

Compatible with SAS backplane architecture

Supports multiple RAID configurations

6.Application scenarios

Database storage:

Oracle Database

IBM Db2

SQL Server

MySQL Cluster

Virtualization platform:

VMware vSphere

IBM Power VM

Hyper converged infrastructure

Container storage

Enterprise applications:

SAP HANA

Big Data Analytics

File sharing storage

backup and archive

7.Management and maintenance

Monitoring function:

S. M.A.R.T. status monitoring

Real time temperature monitoring and warning

Service life indication and prediction

Performance statistics and reports

Maintenance features:

Support hot swappable replacement

Online firmware upgrade

Diagnostic tool support

Remote management function

8.Service Support

Technical support: Original factory technical support

Service level: Optional 4-hour response service

Global warranty: providing international warranty services

9.Physical specifications

Size: 100.0 × 69.85 × 14.8 mm

Weight: Approximately 180g

Interface: SFF-8639 (SAS)

Installation method: 2.5-inch standard bracket

Material: Metal shell, enhanced heat dissipation
