Product Overview

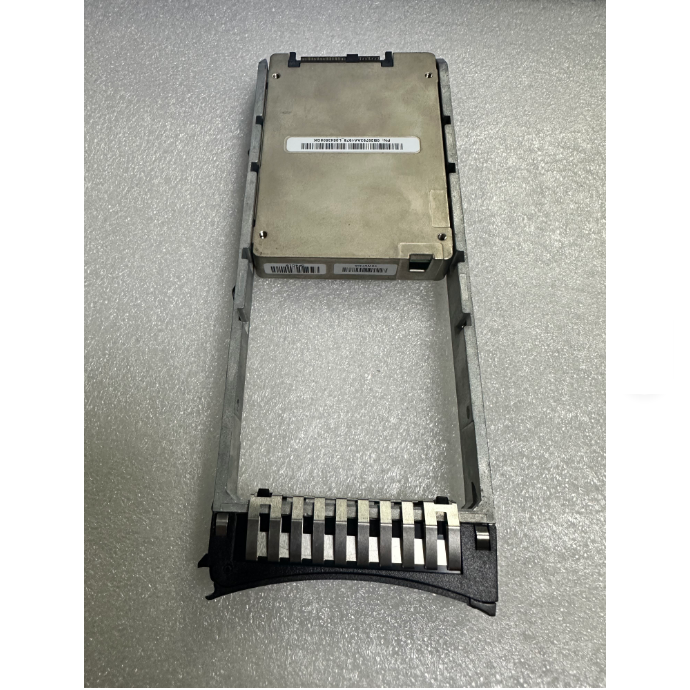

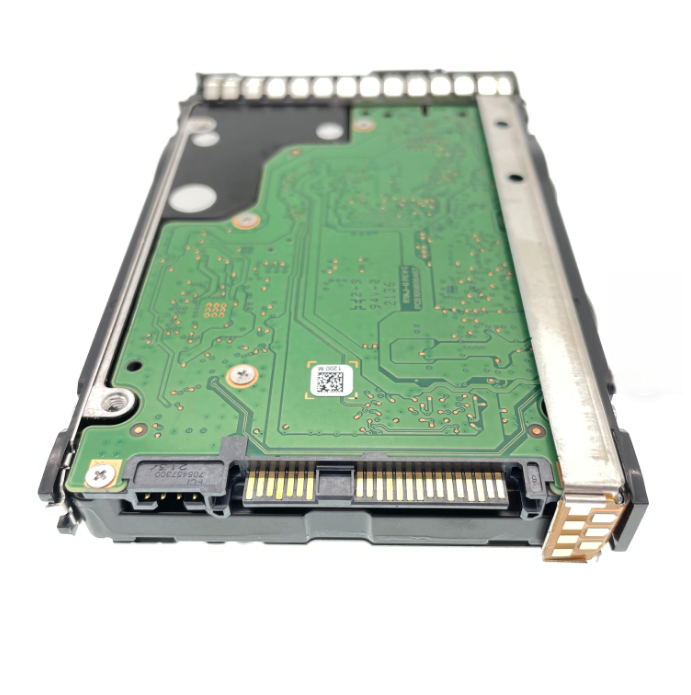

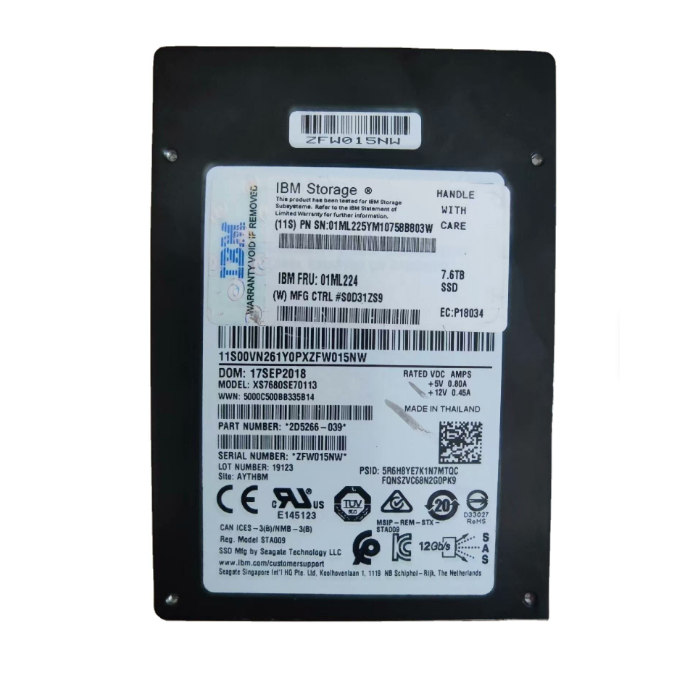

Original enterprise grade hard drive | 7.68TB SAS 12Gb/s high-performance hard drive (dual models available: 01ML224/01ML225) - provides a high-capacity and highly reliable storage solution for IBM servers

2.Core advantages

Pure quality

Original server components undergo strict quality control and compatibility testing to ensure perfect compatibility with IBM systems

High speed and stable transmission

Adopting SAS 12Gb/s interface, providing stable and reliable data transmission performance, with a maximum transmission rate of 1200MB/s

High-capacity storage

7.68TB ultra large capacity provides sufficient storage space for enterprise level applications, significantly improving storage density

Plug and play design

Includes original tray bracket, can be directly installed into IBM servers for use without additional configuration

Enterprise level reliability

Supports 24/7 uninterrupted operation with an average time between failures (MTBF) of 2 million hours

3.Technical specifications

Detailed specifications of parameter categories

Hard drive model 01ML224 or 01ML225

Storage capacity 7.68TB

Interface standard SAS 12Gb/s

Speed 7200 RPM

Cache size 256MB

Appearance specification 3.5 inches

Average latency of 4.16ms

Workload 550TB/year

Compatible with IBM System x series servers

4.Compatible system

Perfect compatibility platform:

System x3650 M5

System x3550 M5

Storwize V5000

FlashSystem 7200

DS4200/DS4300

Other IBM systems that support SAS 12Gb/s interface

5.Application scenarios

Enterprise level application environment:

Data Storage Expansion - Provides a high-capacity storage expansion solution for IBM servers

Backup and Archive - Enterprise Data Backup and Long-Term Archive Storage

File Server - Large File Sharing and Document Management Storage

Video Monitoring Storage - Security Monitoring System Video Data Storage

Email System Storage - Enterprise Email System Data Storage

Virtualized storage - virtualized environment data storage

6.Quality Assurance

100% original components, genuine guarantee

Pass 96 hour continuous read and write test

Provide a complete SMART health status report

Professional technical support services

Support compatibility verification

7.Installation requirements

system requirements

A server backplane that supports SAS 12Gb/s interface is required

Firmware Version

Recommend using the latest IBM system firmware version

environmental conditions

Operating temperature: 5°C to 55°C

Storage temperature: -40°C to 70°C

Humidity: 8% to 90% non-condensing

Installation recommendations

Recommend installation and configuration by professional technicians

8.Service Support

Professional technical consultation - providing complete technical specifications and compatibility guidance

Installation and configuration support - provide installation and configuration guidance documents

Batch purchase discount - supports enterprise level batch purchase needs

Quick Response Service - Professional Technical Support Team

Spare parts support - providing fast spare parts replacement services
